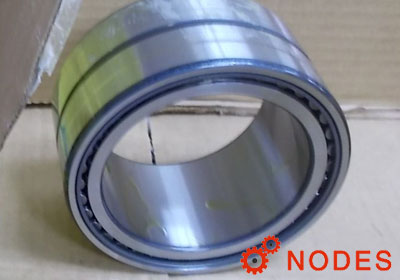

INA NA4911-XL Bearing

INA NA4911-XL needle bearings

Also known as : NA4911-XL

  • Inside Diameter: 55 mm
  • Outside Diameter: 80 mm
  • Width: 25 mm
  • Basic dynamic load rating: 65 kN
  • Basic static load rating: 100 kN

Inquire Now


INA NA4911-XL Bearing

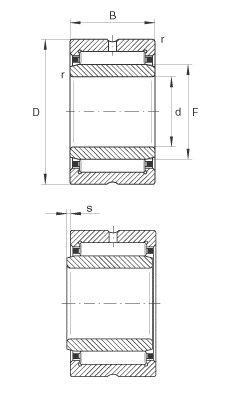

INA NA4911-XL Bearing details

d 55 mm
D 80 mm
B 25 mm
F 63 mm
rmin 1 mm
s 1,5 mm  Axial displacement
m 393 g  Mass
Cr 65000 N  Basic dynamic load rating, radial
C0r 100000 N  Basic static load rating, radial
Cur 17300 N  Fatigue limit load, radial
nG 7200 1/min  Limiting speed
nB 4000 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA NA4911-XL needle bearings in stock.

INA NA4911-XL bearing cross reference

INA HK5520 bearing
55mm x 63mm x 20mm
INA HK5528 bearing
55mm x 63mm x 28mm
IKO NA4911 bearing
55mm * 80mm * 25mm
IKO NA4911UU bearing
55mm * 80mm * 25mm
INA IR55X60X25-XL bearing
55mm x 60mm x 25mm

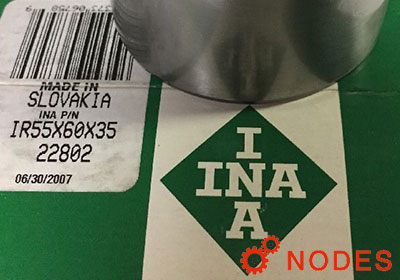

INA IR55X60X35-XL bearing
55mm x 60mm x 35mm
INA IR55X63X25-XL bearing
55mm x 63mm x 25mm
INA IR55X63X45-XL bearing
55mm x 63mm x 45mm
INA IR55X65X28-XL bearing
55mm x 65mm x 28mm

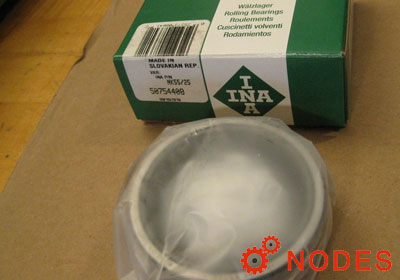

INA NK55/25-D-XL bearing
55mm x 68mm x 25mm
INA NA6911-ZW-XL bearing
55mm x 80mm x 45mm
INA NK55/25-XL bearing
55mm x 68mm x 25mm
