INA NAO15X28X13-XL Bearing

INA NAO15X28X13-XL needle bearings

Also known as : NAO15X28X13-XL

  • Inside Diameter: 15 mm
  • Outside Diameter: 28 mm
  • Width: 13 mm
  • Basic dynamic load rating: 11.1 kN
  • Basic static load rating: 14.3 kN

Inquire Now


INA NAO15X28X13-XL Bearing

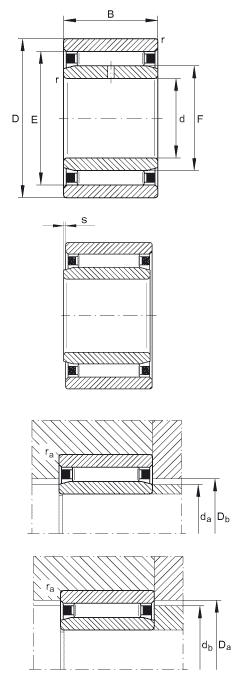

INA NAO15X28X13-XL Bearing details

d 15 mm
D 28 mm
B 13 mm
Da 24,3 mm
Db 20,4 mm
da 19,7 mm
db 23,6 mm
E 24 mm
F 20 mm
ra max 0,3 mm
rmin 0,3 mm
s 0,5 mm  Axial displacement
m 29 g  Mass
Cr 11100 N  Basic dynamic load rating, radial
C0r 14300 N  Basic static load rating, radial
Cur 2310 N  Fatigue limit load, radial
nG 21300 1/min  Limiting speed
nB 12100 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA NAO15X28X13-XL needle bearings in stock.
