INA NAO90X120X30-XL Bearing

INA NAO90X120X30-XL needle bearings

Also known as : NAO90X120X30-XL

  • Inside Diameter: 90 mm
  • Outside Diameter: 120 mm
  • Width: 30 mm
  • Basic dynamic load rating: 80 kN
  • Basic static load rating: 188 kN

Inquire Now


INA NAO90X120X30-XL Bearing

INA NAO90X120X30-XL Bearing details

d 90 mm
D 120 mm
B 30 mm
Da 109 mm
Db 101 mm
da 99,3 mm
db 107,2 mm
E 108 mm
F 100 mm
ra max 1 mm
rmin 1 mm
s 1 mm  Axial displacement
m 1044 g  Mass
Cr 80000 N  Basic dynamic load rating, radial
C0r 188000 N  Basic static load rating, radial
Cur 32000 N  Fatigue limit load, radial
nG 4700 1/min  Limiting speed
nB 2950 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA NAO90X120X30-XL needle bearings in stock.

INA NAO90X120X30-XL bearing cross reference

INA IR90X100X26-XL bearing
90mm x 100mm x 26mm
INA IR90X100X30-XL bearing
90mm x 100mm x 30mm
INA IR90X100X36-XL bearing
90mm x 100mm x 36mm
INA IR90X105X35-XL bearing
90mm x 105mm x 35mm
INA IR90X105X63-XL bearing
90mm x 105mm x 63mm
INA NA4918-XL bearing
90mm x 125mm x 35mm
INA NA6918-ZW-XL bearing
90mm x 125mm x 63mm
INA NK90/25-XL bearing
90mm x 110mm x 25mm
INA NK90/35-XL bearing
90mm x 110mm x 35mm

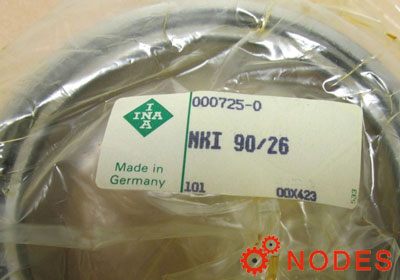

INA NKI90/26-XL bearing
