INA NK14/16-D-XL needle bearings
Also known as : NK14/16-D-XL
- Inside Diameter: 14 mm
- Outside Diameter: 22 mm
- Width: 16 mm
- Basic dynamic load rating: 11.4 kN
- Basic static load rating: 11.5 kN
INA NK14/16-D-XL Bearing
INA NK14/16-D-XL Bearing details
| model | NK14/16-D-XL |
|---|---|
| Fw | 14 mm |
| D | 22 mm |
| C | 16 mm |
| rmin | 0.3 mm |
| Cr | 11400 N |
| C0r | 11500 N |
| Cur | 2100 N, Fatigue limit load, radial |
| Limiting speed | 24600 1/min |
| Reference speed | 18600 1/min |
| Suitable sealing ring | SD14X22X3 G14X22X3 |
| mass | 20.7 g |
As INA bearing distributor, Nodes bearings have INA NK14/16-D-XL needle bearings in stock, light series, with improved steel cage.
INA NK14/16-D-XL bearing cross reference

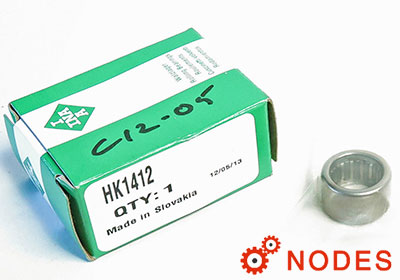

INA HK1412 bearing
14mm x 20mm x 12mm
INA HK1416-2RS bearing
14mm x 20mm x 16mm
INA HK1414-RS bearing
14mm x 20mm x 14mm
INA HN1412 bearing
14mm x 20mm x 12mm
INA IR14X17X17-XL bearing
14mm x 17mm x 17mm
INA NK14/16-XL bearing
14mm x 22mm x 16mm
INA NK14/20-XL bearing
14mm x 22mm x 20mm

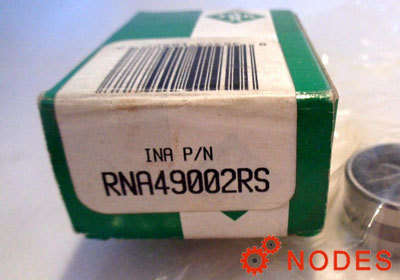

INA RNA4900-XL bearing
14mm x 22mm x 13mm
INA RNA4900-2RSR-XL bearing
14mm x 22mm x 13mm
INA RNA4900-RSR-XL bearing
14mm x 22mm x 13mm
INA K14X18X10 bearing
14mm x 18mm x 10mm
