INA NK24/20-XL Bearing

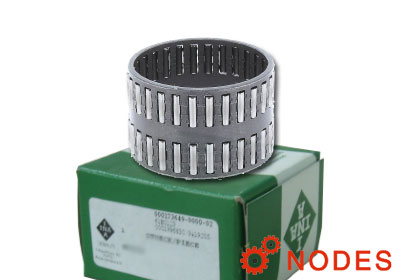

INA NK24/20-XL needle bearings

Also known as : NK24/20-XL

  • Inside Diameter: 24 mm
  • Outside Diameter: 32 mm
  • Width: 20 mm
  • Basic dynamic load rating: 21.4 kN
  • Basic static load rating: 30.5 kN

Inquire Now


INA NK24/20-XL Bearing

INA NK24/20-XL Bearing details

model NK24/20-XL
Fw 24 mm
D 32 mm
C 20 mm
rmin 0.3 mm
Cr 21400 N
C0r 30500 N
Cur 5300 N, Fatigue limit load, radial
Limiting speed 18500 1/min
Reference speed 10700 1/min
Suitable sealing ring G24X32X4
mass 40 g

As INA bearing distributor, Nodes bearings have INA NK24/20-XL needle bearings in stock, light series.

INA NK24/20-XL bearing cross reference

IKO TAF 243220 bearing
D:24mm * 32mm * 20mm
INA NK24/16-XL bearing
24mm x 32mm x 16mm
INA NKS24-XL bearing
24mm x 37mm x 20mm
INA K24X28X10 bearing
24mm x 28mm x 10mm
INA K24X28X13 bearing
24mm x 28mm x 13mm
INA K24X28X17 bearing
24mm x 28mm x 17mm
INA K24X30X17 bearing
24mm x 30mm x 17mm
INA K24X30X31-ZW bearing
24mm x 30mm x 31mm
