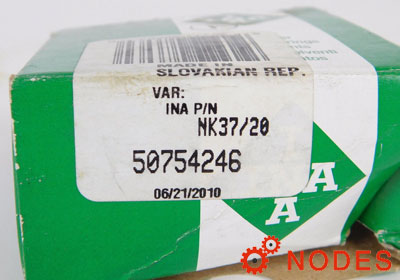

INA NK37/20-D-XL needle bearings
Also known as : NK37/20-D-XL
- Inside Diameter: 37 mm
- Outside Diameter: 47 mm
- Width: 20 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 43.5 kN
INA NK37/20-D-XL Bearing
INA NK37/20-D-XL Bearing details
| model | NK37/20-D-XL |
|---|---|
| Fw | 37 mm |
| D | 47 mm |
| C | 20 mm |
| rmin | 0.3 mm |
| Cr | 28000 N |
| C0r | 43500 N |
| Cur | 7600 N, Fatigue limit load, radial |
| Limiting speed | 12300 1/min |
| Reference speed | 7400 1/min |
| Suitable sealing ring | SD37X47X4 G37X47X4 |
| mass | 77 g |
As INA bearing distributor, Nodes bearings have INA NK37/20-D-XL needle bearings in stock, light series, with improved steel cage.
INA NK37/20-D-XL bearing cross reference
IKO TAF 374720 bearing
D:37mm * 47mm * 20mm
INA NK37/20-XL bearing
37mm x 47mm x 20mm
INA NK37/30-XL bearing
37mm x 47mm x 30mm
INA NKS37-XL bearing
37mm x 52mm x 22mm
