INA NKI40/30-TW-XL Bearing

INA NKI40/30-TW-XL needle bearings

Also known as : NKI40/30-TW-XL

  • Inside Diameter: 40 mm
  • Outside Diameter: 55 mm
  • Width: 30 mm
  • Basic dynamic load rating: 52 kN
  • Basic static load rating: 103 kN

Inquire Now


INA NKI40/30-TW-XL Bearing

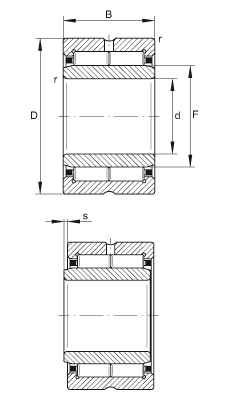

INA NKI40/30-TW-XL Bearing details

d 40 mm
D 55 mm
B 30 mm
F 45 mm
rmin 0,3 mm
s 1 mm  Axial displacement
m 216 g  Mass
Cr 52000 N  Basic dynamic load rating, radial
C0r 103000 N  Basic static load rating, radial
Cur 19100 N  Fatigue limit load, radial
nG 10200 1/min  Limiting speed
nB 5400 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA NKI40/30-TW-XL needle bearings in stock, Light series, with plastic cage, two short needle rollers per cage pocket.
