INA NKIB5903-XL combined needle bearings | 17x30x20mm
Also known as : NKIB5903-XL
- Inside Diameter: 17 mm
- Outside Diameter: 30 mm
- Width: 20 mm
- Basic dynamic load rating: 3.15 kN
- Basic static load rating: 4.9 kN
INA NKIB5903-XL Bearing
INA NKIB5903-XL Bearing details
| Number | NKIB5903-XL | |
|---|---|---|
| Type |
Needle roller bearings Needle roller/angular contact ball bearings NKIA |
|
| d | 17 mm | |
| D | 30 mm | |
| B | 20 mm | |
| C | 18 mm | |
| F | 22 mm | |
| rmin | 0,3 mm | |
| m | 58 g | Mass |
| Cr | 12400 N | Basic dynamic load rating, radial |
| C0r | 14600 N | Basic static load rating, radial |
| Ca | 3150 N | Basic dynamic load rating, axial |
| C0a | 4900 N | Basic static load rating, axial |
| Cur | 2600 N | Fatigue limit load, radial |
| Cua | 216 N | Fatigue limit load, axial |
| nG | 20600 1/min | Limiting speed |
| nB | 15000 1/min | Reference speed |
As INA bearing distributor, Nodes bearings have INA NKIB5903-XL Needle roller/angular contact ball bearings in stock. NKIB5903-XL is double direction axial component.
INA NKIB5903-XL bearing cross reference

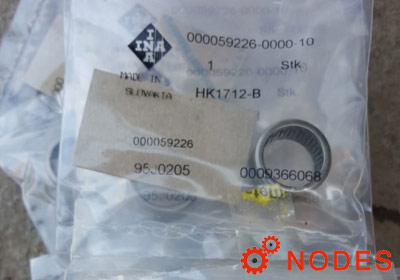

INA HK1712 bearing
17mm x 23mm x 12mm
INA IR17X20X16-XL bearing
17mm x 20mm x 16mm
INA IR17X20X16,5-XL bearing
17mm x 20mm x 16.5mm

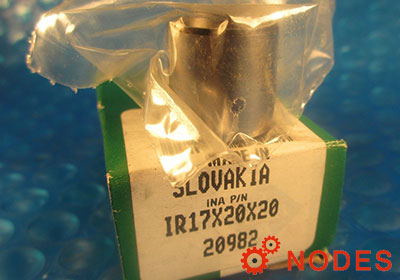

INA IR17X20X20-XL bearing
17mm x 20mm x 20mm
INA IR17X20X20,5-XL bearing
17mm x 20mm x 20.5mm
INA IR17X20X30,5-XL bearing
17mm x 20mm x 30.5mm
INA IR17X21X16-XL bearing
17mm x 21mm x 16mm
INA IR17X21X20-XL bearing
17mm x 21mm x 20mm
INA IR17X22X13-XL bearing
17mm x 22mm x 13mm

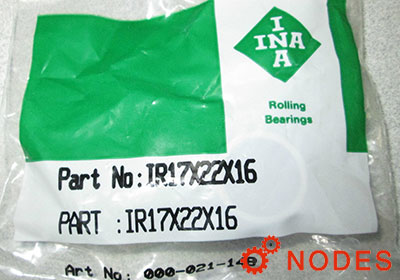

INA IR17X22X16-XL bearing
17mm x 22mm x 16mm

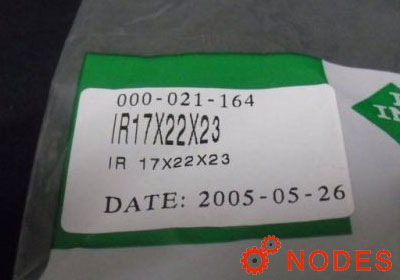

INA IR17X22X23-XL bearing
17mm x 22mm x 23mm
