INA NKIS65-XL needle bearings
Also known as : NKIS65-XL
- Inside Diameter: 65 mm
- Outside Diameter: 95 mm
- Width: 28 mm
- Basic dynamic load rating: 81 kN
- Basic static load rating: 123 kN
INA NKIS65-XL Bearing

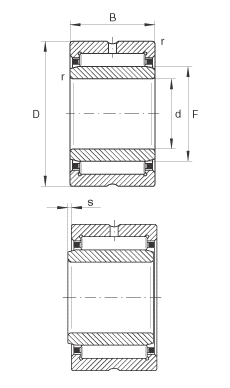

INA NKIS65-XL Bearing details
| d | 65 mm | |
|---|---|---|
| D | 95 mm | |
| B | 28 mm | |
| F | 75 mm | |
| rmin | 1,1 mm | |
| s | 2 mm | Axial displacement |
| m | 641 g | Mass |
| Cr | 81000 N | Basic dynamic load rating, radial |
| C0r | 123000 N | Basic static load rating, radial |
| Cur | 21900 N | Fatigue limit load, radial |
| nG | 6000 1/min | Limiting speed |
| nB | 3600 1/min | Reference speed |
As INA bearing distributor, Nodes bearings have INA NKIS65-XL needle bearings in stock, heavy series.
INA NKIS65-XL bearing cross reference
INA IR65X72X25-XL bearing
65mm x 72mm x 25mm
INA IR65X72X45-XL bearing
65mm x 72mm x 45mm
INA IR65X73X25-XL bearing
65mm x 73mm x 25mm
INA IR65X73X35-XL bearing
65mm x 73mm x 35mm
INA IR65X75X28-XL bearing
65mm x 75mm x 28mm
INA NA4913-XL bearing
65mm x 90mm x 25mm
INA NA6913-ZW-XL bearing
65mm x 90mm x 45mm
INA NK65/25-XL bearing
65mm x 78mm x 25mm
INA NK65/35-XL bearing
65mm x 78mm x 35mm
INA NKI65/25-XL bearing
65mm x 90mm x 25mm
INA NKI65/35-XL bearing
65mm x 90mm x 35mm
