INA PNA22/44-XL Aligning needle bearings
Also known as : PNA22/44-XL
- Inside Diameter: 22 mm
- Outside Diameter: 44 mm
- Width: 20 mm
- Basic dynamic load rating: 24.8 kN
- Basic static load rating: 34 kN
INA PNA22/44-XL Bearing
INA PNA22/44-XL Bearing details
| model | PNA22/44-XL |
|---|---|
| d | 22 mm |
| D | 44 mm |
| C | 20 mm |
| B | 20 mm |
| D1 | 38.5 mm |
| F | 28 mm |
| r1 min | 0.3 mm |
| rmin | 0.8 mm |
| s | 0.5 mm |
| Cr | 24800 N |
| C0r | 34000 N |
| Cur | 5900 N, Fatigue limit load, radial |
| Limiting speed | 15800 1/min |
| mass | 145 g |
As INA bearing distributor, Nodes bearings have INA PNA22/44-XL aligning needle bearings in stock, with inner ring.
INA PNA22/44-XL bearing cross reference
INA HK2210 bearing
22mm x 28mm x 10mm

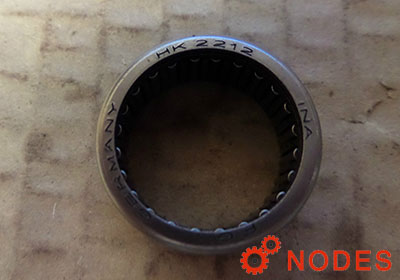

INA HK2212 bearing
22mm x 28mm x 12mm
INA HK2216 bearing
22mm x 28mm x 16mm

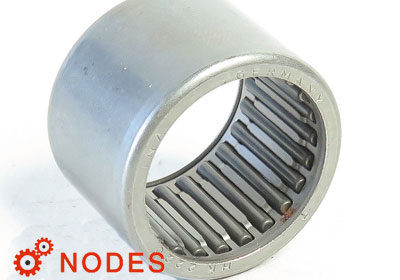

INA HK2220 bearing
22mm x 28mm x 20mm
INA HK2216-2RS bearing
22mm x 28mm x 16mm
INA HK2220-2RS bearing
22mm x 28mm x 20mm
INA HK2214-RS bearing
22mm x 28mm x 14mm
INA HK2218-RS bearing
22mm x 28mm x 18mm
INA IR22X26X16-XL bearing
22mm x 26mm x 16mm

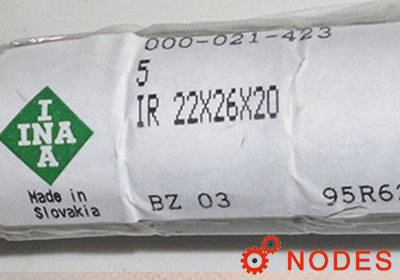

INA IR22X26X20-XL bearing
22mm x 26mm x 20mm
INA IR22X28X17-XL bearing
22mm x 28mm x 17mm
