INA RNAO15X23X13-XL needle bearings
Also known as : RNAO15X23X13-XL ,RNAF152313
- Inside Diameter: 15 mm
- Outside Diameter: 23 mm
- Width: 13 mm
- Basic dynamic load rating: 9.7 kN
- Basic static load rating: 10.9 kN
INA RNAO15X23X13-XL Bearing

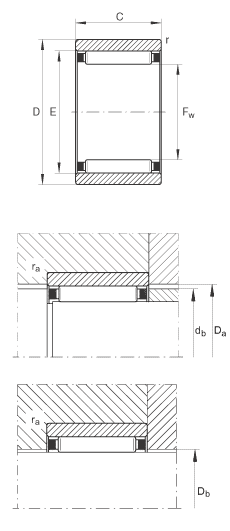

INA RNAO15X23X13-XL Bearing details
Fw | 15 mm | |
---|---|---|
D | 23 mm | |
C | 13 mm | |
Da | 19,3 mm | |
Db | 15,4 mm | |
db | 18,6 mm | |
E | 19 mm | |
ra max | 0,3 mm | |
rmin | 0,3 mm | |
m | 20 g | Mass |
Cr | 9700 N | Basic dynamic load rating, radial |
C0r | 10900 N | Basic static load rating, radial |
Cur | 1760 N | Fatigue limit load, radial |
nG | 24300 1/min | Limiting speed |
nB | 17900 1/min | Reference speed |
As INA bearing distributor, Nodes bearings have INA RNAO15X23X13-XL needle bearings in stock, without ribs.
