INA RNAO16X28X12-XL Bearing

INA RNAO16X28X12-XL needle bearings

Also known as : RNAO16X28X12-XL , RNAF162812

  • Inside Diameter: 16 mm
  • Outside Diameter: 28 mm
  • Width: 12 mm
  • Basic dynamic load rating: 13 kN
  • Basic static load rating: 12.5 kN

Inquire Now


INA RNAO16X28X12-XL Bearing

INA RNAO16X28X12-XL Bearing details

Fw 16 mm
D 28 mm
C 12 mm
Da 22,3 mm
Db 16,4 mm
db 21,6 mm
E 22 mm
ra max 0,3 mm
rmin 0,3 mm
m 32 g  Mass
Cr 13000 N  Basic dynamic load rating, radial
C0r 12500 N  Basic static load rating, radial
Cur 2210 N  Fatigue limit load, radial
nG 22900 1/min  Limiting speed
nB 15900 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA RNAO16X28X12-XL needle bearings in stock, without ribs.

INA RNAO16X28X12-XL bearing cross reference

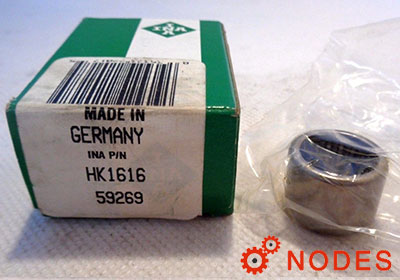

INA HK1616 bearing
16mm x 22mm x 16mm

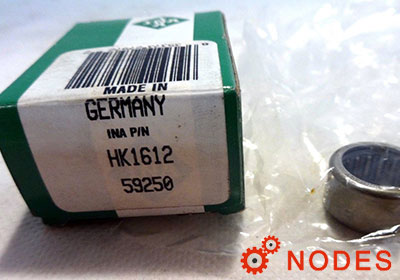

INA HK1612 bearing
16mm x 22mm x 12mm

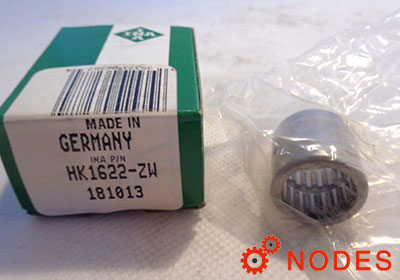

INA HK1622-ZW bearing
16mm x 22mm x 22mm

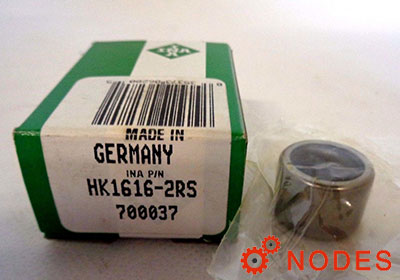

INA HK1616-2RS bearing
16mm x 22mm x 16mm
INA HK1620-2RS bearing
16mm x 22mm x 20mm
INA HK1614-RS bearing
16mm x 22mm x 14mm
INA HN1612 bearing
16mm x 22mm x 12mm
IKO RNAF162812 bearing
16mm * 28mm * 12mm
INA NK16/16-XL bearing
16mm x 24mm x 16mm
INA NK16/20-XL bearing
16mm x 24mm x 20mm
INA RNA4901-XL bearing
16mm x 24mm x 13mm

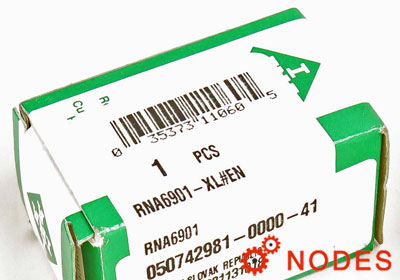

INA RNA6901-XL bearing
16mm x 24mm x 22mm
