INA SCE108 shell needle bearings, inch sizes
Also known as : SCE108, BA108
- Inside Diameter: 15.875 mm
- Outside Diameter: 20.638 mm
- Width: 12.7 mm
- Basic dynamic load rating: 8.1 kN
- Basic static load rating: 12 kN
INA SCE108 Bearing
INA SCE108 Bearing details
| model | SCE108 |
|---|---|
| Fw | 15.875 mm |
| Fw | 5/8 inch |
| D | 20.638 mm |
| D | 0.813 inch |
| C | 12.7 mm |
| C | 0.5 inch |
| Cr | 8100 N |
| Cr | 1820 lbf |
| C0r | 12000 N |
| C0r | 2700 lbf |
| Limiting speed | 16000 1/min |
| mass | 9 g |
| mass | 0.02 lbs |
INA SCE108 needle bearings, inch sizes needle roller bearing, to ABMA 18.2 - 1982, inch sizes.
INA SCE108 bearing cross reference
INA SCE105 bearing
15.875mm x 20.638mm x 7.938mm

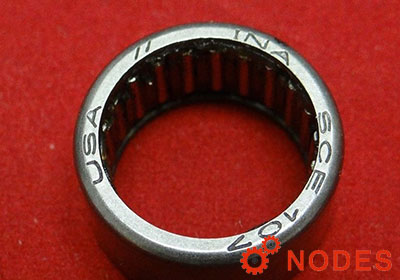

INA SCE107 bearing
15.875mm x 20.638mm x 11.112mm
INA SCE107-1/2 bearing
15.875mm x 20.638mm x 11.91mm

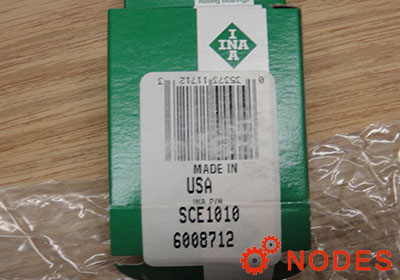

INA SCE1010 bearing
15.875mm x 20.638mm x 15.875mm

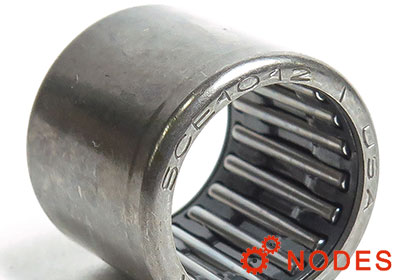

INA SCE1012 bearing
15.875mm x 20.638mm x 19.05mm
INA PI101406 bearing
15.875mm x 22.225mm x 9.525mm
INA PI101408 bearing
15.875mm x 22.225mm x 12.7mm
INA PI101412 bearing
15.875mm x 22.225mm x 19.05mm
INA PI101416 bearing
15.875mm x 22.225mm x 25.4mm

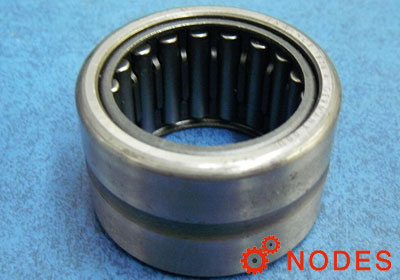

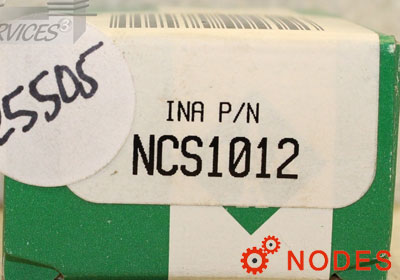

INA NCS1012 bearing
15.875mm x 28.575mm x 19.05mm
INA NCS1016 bearing
15.875mm x 28.575mm x 25.4mm
