INA GAL10-UK Rod ends | d:10,d2:29,l2:62.5mm
Also known as : GAL10-UK
- d: 10 mm
- d2: 29 mm
- Height: 62.5 mm
- Basic dynamic load rating: 8.64 kN
- Basic static load rating: 20.6 kN
INA GAL10-UK Bearing
INA GAL10-UK Bearing details

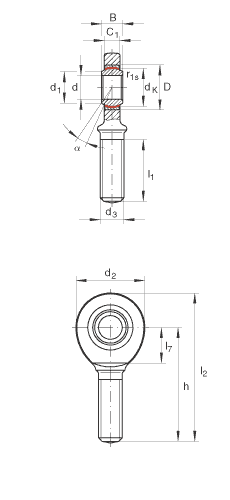

| Number | GAL10-UK | |
|---|---|---|
| Type |
Rod ends with external thread, maintenance-free, to DIN ISO 12 240-4, left hand thread |
|
| d | 10 mm | Tolerance: 0/-0,008 |
| d2 | 29 mm | |
| l2 | 62,5 mm | |
| B | 9 mm | Tolerance: 0/-0,12 |
| C1 | 7 mm | |
| D | 19 mm | |
| d1 | 13,2 mm | |
| d3 | M10 | |
| dK | 16 mm | |
| h | 48 mm | |
| l1 | 26 mm | |
| l7 | 15 mm | |
| r1s min | 0,3 mm | Chamfer dimension |
| α | 12 ° | |
| m | 0,051 kg | Mass |
| Cr | 8640 N | Basic dynamic load rating, radial |
| C0r | 20600 N |
Basic static load rating, radial Basic load rating of housing |
As INA bearing distributor, Nodes bearings have INA GAL10-UK none in stock. GAL10-UK, with external thread, maintenance-free, to DIN ISO 12 240-4, left hand thread.
