INA GE120-AX plain bearings | 120x230x64mm
Also known as : GE120-AX
- Inside Diameter: 120 mm
- Outside Diameter: 230 mm
- Width: 64 mm
- Basic dynamic load rating: 1240 kN
- Basic static load rating: 6220 kN
INA GE120-AX Bearing

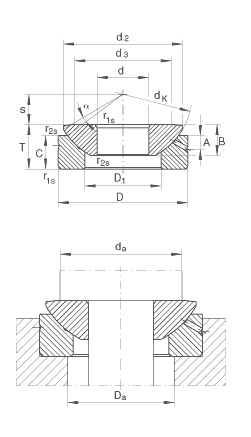

INA GE120-AX Bearing details
Number | GE120-AX | |
---|---|---|
Type | Spherical plain bearings | |
d | 120 mm | Tolerance: 0/-0,02 |
D | 230 mm | Tolerance: 0/-0,03 |
T | 64 mm | Tolerance: 0/-0,4 |
A | 16,5 mm | |
B | 52 mm | Tolerance: 0/-0,4 |
C | 45 mm | Tolerance: 0/-0,4 |
D1 | 154 mm | |
Da min | 162 mm | |
d3 | 170 mm | |
da max | 170 mm | |
dK | 245 mm | |
r1s min | 1 mm | Chamfer dimension |
r2s min | 0,3 mm | Chamfer dimension |
s | 52,5 mm | |
α | 8 ° | |
m | 13 kg | Mass |
Ca | 1240000 N | Basic dynamic load rating, axial |
C0a | 6220000 N | Basic static load rating, axial |
As INA bearing distributor, Nodes bearings have INA GE120-AX Axial spherical plain bearings in stock. GE120-AX.
