INA GE17-UK-2RS plain bearings | 17x30x14mm
Also known as : GE17-UK-2RS
- Inside Diameter: 17 mm
- Outside Diameter: 30 mm
- Width: 14 mm
- Basic dynamic load rating: 48.8 kN
- Basic static load rating: 81.3 kN
INA GE17-UK-2RS Bearing

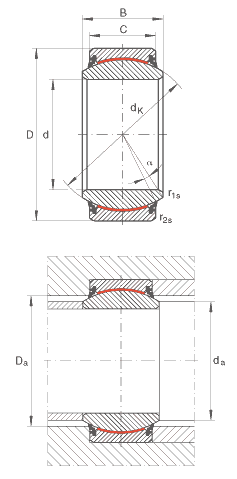

INA GE17-UK-2RS Bearing details
Number | GE17-UK-2RS | |
---|---|---|
Type | Spherical plain bearings | |
d | 17 mm | Tolerance: 0/-0,008 |
D | 30 mm | Tolerance: 0/-0,009 |
B | 14 mm | Tolerance: 0/-0,12 |
C | 10 mm | Tolerance: 0/-0,24 |
Da min | 24 mm | |
da max | 20,7 mm | |
dK | 25 mm | |
r1s min | 0,3 mm | Chamfer dimension |
r2s min | 0,3 mm | Chamfer dimension |
α | 10 ° | |
m | 0,037 kg | Mass |
Cr | 48800 N | Basic dynamic load rating, radial |
C0r | 81300 N | Basic static load rating, radial |
As INA bearing distributor, Nodes bearings have INA GE17-UK-2RS radial spherical plain bearings in stock. GE17-UK-2RS, maintenance-free, to DIN ISO 12 240-1, lip seals on both sides.
