INA GIL8-DO Rod ends | d:8,d2:24,l4:48mm
Also known as : GIL8-DO
- d: 8 mm
- d2: 24 mm
- Height: 48 mm
- Basic dynamic load rating: 5.59 kN
- Basic static load rating: 16 kN
INA GIL8-DO Bearing

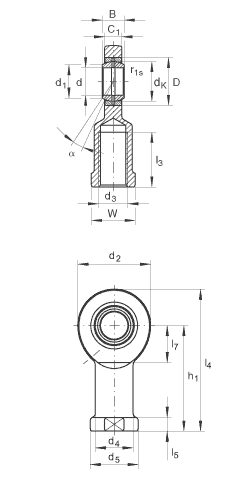

INA GIL8-DO Bearing details
| Number | GIL8-DO | |
|---|---|---|
| Type |
Rod ends with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread |
|
| d | 8 mm | Tolerance: 0/-0,008 |
| d2 | 24 mm | |
| l4 | 48 mm | |
| B | 8 mm | Tolerance: 0/-0,12 |
| C1 | 6 mm | |
| D | 16 mm | |
| d1 | 10,2 mm | |
| d3 | M8 | |
| d4 | 12,5 mm | |
| d5 | 16 mm | |
| dK | 13 mm | |
| h1 | 36 mm | |
| l3 | 15 mm | |
| l5 | 5 mm | |
| l7 | 14 mm | |
| r1s min | 0,3 mm | Chamfer dimension |
| W | 14 mm | |
| α | 15 ° | |
| m | 0,039 kg | Mass |
| Cr | 5590 N | Basic dynamic load rating, radial |
| C0r | 16000 N |
Basic static load rating, radial Basic load rating of housing |
