INA GIR35-UK-2RS Rod ends | d:35,d2:82,l4:166mm
Also known as : GIR35-UK-2RS
- d: 35 mm
- d2: 82 mm
- Height: 166 mm
- Basic dynamic load rating: 210 kN
- Basic static load rating: 159 kN
INA GIR35-UK-2RS Bearing

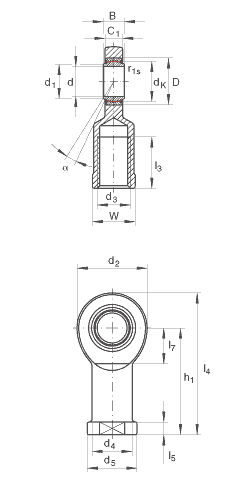

INA GIR35-UK-2RS Bearing details
| Number | GIR35-UK-2RS | |
|---|---|---|
| Type |
Rod ends with internal thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, right hand thread |
|
| d | 35 mm | Tolerance: 0/-0,012 |
| d2 | 82 mm | |
| l4 | 166 mm | |
| B | 25 mm | Tolerance: 0/-0,12 |
| C1 | 21 mm | |
| D | 55 mm | |
| d1 | 39,7 mm | |
| d3 | M36x3 | |
| d4 | 47 mm | |
| d5 | 58 mm | |
| dK | 47 mm | |
| h1 | 125 mm | |
| l3 | 60 mm | |
| l5 | 15 mm | |
| l7 | 42 mm | |
| r1s min | 0,6 mm | Chamfer dimension |
| W | 50 mm | |
| α | 6 ° | |
| m | 1,3 kg | Mass |
| Cr | 210000 N | Basic dynamic load rating, radial |
| C0r | 159000 N |
Basic static load rating, radial Basic load rating of housing In rod ends with the sliding material ELGOGLIDE, the basic static load rating C 0r of the housing is less than the basic dynamic load rating C r of the bearing. |
As INA bearing distributor, Nodes bearings have INA GIR35-UK-2RS none in stock. GIR35-UK-2RS, with internal thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, right hand thread.
INA GIR35-UK-2RS bearing cross reference
