INA GIR60-DO-2RS Rod ends | d:60,d2:135,l4:242.5mm
Also known as : GIR60-DO-2RS
- d: 60 mm
- d2: 135 mm
- Height: 242.5 mm
- Basic dynamic load rating: 245 kN
- Basic static load rating: 485 kN
INA GIR60-DO-2RS Bearing

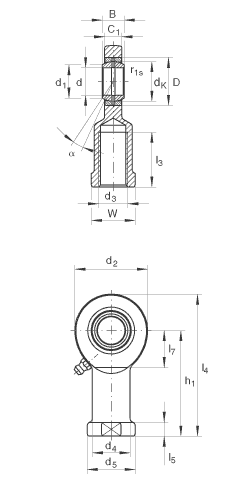

INA GIR60-DO-2RS Bearing details
| Number | GIR60-DO-2RS | |
|---|---|---|
| Type |
Rod ends with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread |
|
| d | 60 mm | Tolerance: 0/-0,015 |
| d2 | 135 mm | |
| l4 | 242,5 mm | |
| B | 44 mm | Tolerance: 0/-0,15 |
| C1 | 38 mm | |
| D | 90 mm | |
| d1 | 66,8 mm | |
| d3 | M52x3 | Thread runout or thread groove at manufacturer's discretion |
| d4 | 70 mm | |
| d5 | 88 mm | |
| dK | 80 mm | |
| h1 | 175 mm | |
| l3 | 70 mm | |
| l5 | 20 mm | |
| l7 | 75 mm | |
| r1s min | 1 mm | Chamfer dimension |
| W | 75 mm | |
| α | 6 ° | |
| m | 5,5 kg | Mass |
| Cr | 245000 N | Basic dynamic load rating, radial |
| C0r | 485000 N |
Basic static load rating, radial Basic load rating of housing |
As INA bearing distributor, Nodes bearings have INA GIR60-DO-2RS none in stock. GIR60-DO-2RS, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread.
