INA SL014840 roller bearings
Also known as : SL014840, NNC4840V
- Inside Diameter: 200 mm
- Outside Diameter: 250 mm
- Width: 50 mm
- Basic dynamic load rating: 320 kN
- Basic static load rating: 770 kN
INA SL014840 Bearing
INA SL014840 Bearing details
| model | SL014840 |
|---|---|
| d | 200 mm |
| D | 250 mm |
| B | 250 mm |
| C | 25 mm |
| D1 | 231.2 mm |
| d1 | 218.1 mm |
| rmin | 1.5 mm |
| Cr | 320000 N |
| C0r | 770000 N |
| Cur | 84000 N, Fatigue limit load, radial |
| Limiting speed | 960 1/min |
| Reference speed | 1410 1/min |
| mass | 5.9 kg |
INA SL014840 roller bearings, Designation to DIN 5412: NNC4840V, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set
INA SL014840 bearing cross reference
INA SL014940 bearing
200mm x 280mm x 80mm
INA SL024840 bearing
200mm x 250mm x 50mm
INA SL024940 bearing
200mm x 280mm x 80mm
INA SL04200-PP bearing
200mm x 270mm x 80mm
INA SL045040-PP bearing
200mm x 310mm x 150mm
INA SL181840 bearing
200mm x 250mm x 24mm
INA SL182240 bearing
200mm x 360mm x 98mm

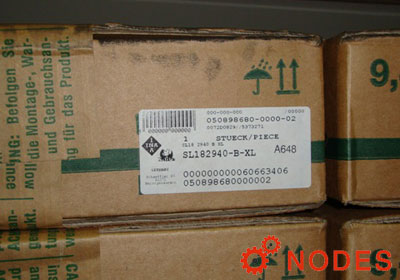

INA SL182940-XL bearing
200mm x 280mm x 48mm
INA SL183040 bearing
200mm x 310mm x 82mm
INA SL185040-TB bearing
200mm x 310mm x 150mm
