INA SL014852 roller bearings
Also known as : SL014852, NNC4852V
- Inside Diameter: 260 mm
- Outside Diameter: 320 mm
- Width: 60 mm
- Basic dynamic load rating: 540 kN
- Basic static load rating: 1370 kN
INA SL014852 Bearing
INA SL014852 Bearing details
| model | SL014852 |
|---|---|
| d | 260 mm |
| D | 320 mm |
| B | 320 mm |
| C | 30 mm |
| D1 | 298.8 mm |
| d1 | 281.8 mm |
| rmin | 2 mm |
| Cr | 540000 N |
| C0r | 1370000 N |
| Cur | 152000 N, Fatigue limit load, radial |
| Limiting speed | 650 1/min |
| Reference speed | 1080 1/min |
| mass | 11 kg |
INA SL014852 roller bearings, Designation to DIN 5412: NNC4852V, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set
INA SL014852 bearing cross reference
INA SL014952 bearing
260mm x 360mm x 100mm
INA SL024852 bearing
260mm x 320mm x 60mm
INA SL024952 bearing
260mm x 360mm x 100mm
INA SL04260-PP bearing
260mm x 340mm x 95mm
INA SL045052-PP bearing
260mm x 400mm x 190mm

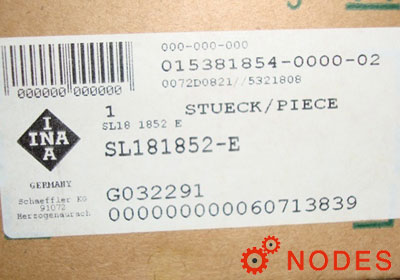

INA SL181852-E bearing
260mm x 320mm x 28mm
INA SL182952 bearing
260mm x 360mm x 60mm
INA SL183052-TB bearing
260mm x 400mm x 104mm
INA SL185052-TB bearing
260mm x 400mm x 190mm
