INA SL014932 roller bearings
Also known as : SL014932, NNC4932V
- Inside Diameter: 160 mm
- Outside Diameter: 220 mm
- Width: 60 mm
- Basic dynamic load rating: 425 kN
- Basic static load rating: 880 kN
INA SL014932 Bearing
INA SL014932 Bearing details
| model | SL014932 |
|---|---|
| d | 160 mm |
| D | 220 mm |
| B | 220 mm |
| C | 30 mm |
| D1 | 200.3 mm |
| d1 | 184.2 mm |
| rmin | 2 mm |
| Cr | 425000 N |
| C0r | 880000 N |
| Cur | 110000 N, Fatigue limit load, radial |
| Limiting speed | 1080 1/min |
| Reference speed | 1660 1/min |
| mass | 7 kg |
INA SL014932 roller bearings, Designation to DIN 5412: NNC4932V, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set
INA SL014932 bearing cross reference
INA SL014832 bearing
160mm x 200mm x 40mm
INA SL024832 bearing
160mm x 200mm x 40mm

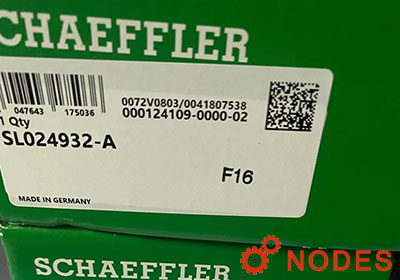

INA SL024932 bearing
160mm x 220mm x 60mm
INA SL04160-PP bearing
160mm x 220mm x 80mm
INA SL045032-PP bearing
160mm x 240mm x 109mm
INA SL182232 bearing
160mm x 290mm x 80mm
INA SL182932-XL bearing
160mm x 220mm x 36mm

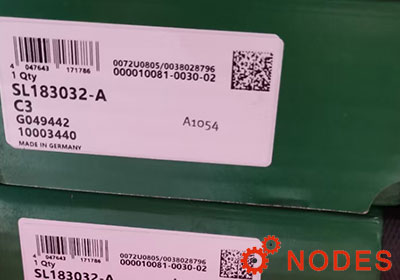

INA SL183032 bearing
