INA SL024868 roller bearings
Also known as : SL024868, NNCL4868V
- Inside Diameter: 340 mm
- Outside Diameter: 420 mm
- Width: 80 mm
- Basic dynamic load rating: 870 kN
- Basic static load rating: 2330 kN
INA SL024868 Bearing
INA SL024868 Bearing details
| model | SL024868 |
|---|---|
| d | 340 mm |
| D | 420 mm |
| B | 420 mm |
| C | 40 mm |
| d1 | 368.1 mm |
| E | 396.9 mm |
| rmin | 2.1 mm |
| s | 6 mm, Axial displacement |
| Cr | 870000 N |
| C0r | 2330000 N |
| Cur | 244000 N, Fatigue limit load, radial |
| Limiting speed | 465 1/min |
| Reference speed | 810 1/min |
| mass | 25 kg |
INA SL024868 roller bearings, Designation to DIN 5412: NNCL4868V, Cylindrical roller bearings, non-locating bearing, double row, full complement cylindrical roller set
INA SL024868 bearing cross reference
INA SL014868 bearing
340mm x 420mm x 80mm
INA SL014968 bearing
340mm x 460mm x 118mm
INA SL024968 bearing
340mm x 460mm x 118mm

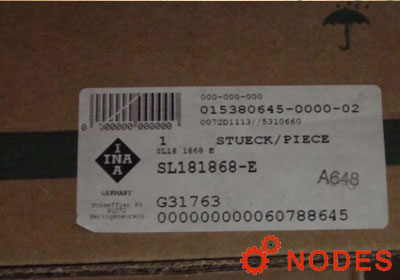

INA SL181868-E bearing
340mm x 420mm x 38mm
INA SL182968-TB bearing
340mm x 460mm x 72mm
INA SL183068-TB bearing
340mm x 520mm x 133mm
