INA SL024920 roller bearings
Also known as : SL024920, NNCL4920V
- Inside Diameter: 100 mm
- Outside Diameter: 140 mm
- Width: 40 mm
- Basic dynamic load rating: 191 kN
- Basic static load rating: 370 kN
INA SL024920 Bearing
INA SL024920 Bearing details
| model | SL024920 |
|---|---|
| d | 100 mm |
| D | 140 mm |
| B | 140 mm |
| C | 20 mm |
| d1 | 116.4 mm |
| E | 129.6 mm |
| rmin | 1.1 mm |
| s | 2 mm, Axial displacement |
| Cr | 191000 N |
| C0r | 370000 N |
| Cur | 47500 N, Fatigue limit load, radial |
| Limiting speed | 1720 1/min |
| Reference speed | 2700 1/min |
| mass | 1.9 kg |
INA SL024920 roller bearings, Designation to DIN 5412: NNCL4920V, Cylindrical roller bearings, non-locating bearing, double row, full complement cylindrical roller set
INA SL024920 bearing cross reference

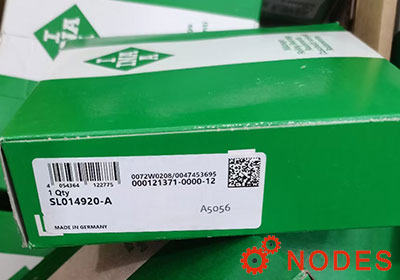

INA SL014920 bearing
100mm x 140mm x 40mm

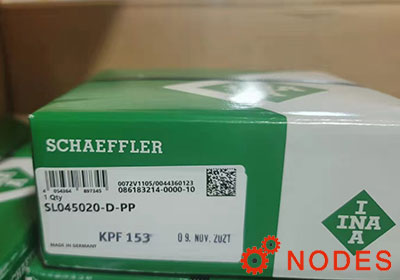

INA SL045020-D-PP bearing
100mm x 150mm x 67mm
INA SL182220 bearing
100mm x 180mm x 46mm
INA SL182920-XL bearing
100mm x 140mm x 24mm
INA SL183020 bearing
100mm x 150mm x 37mm

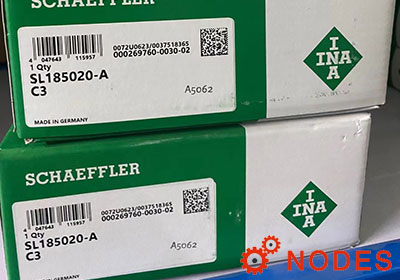

INA SL185020 bearing
100mm x 150mm x 67mm
