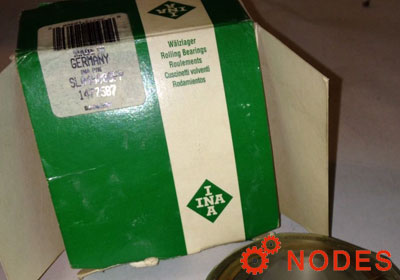

INA SL045008-PP roller bearings
Also known as : SL045008-PP,NNF5008ADA-2LSV
- Inside Diameter: 40 mm
- Outside Diameter: 68 mm
- Width: 38 mm
- Basic dynamic load rating: 80 kN
- Basic static load rating: 111 kN
INA SL045008-PP Bearing
INA SL045008-PP Bearing details
| model | SL045008-PP |
|---|---|
| d | 40 mm |
| D | 68 mm |
| B | 38 mm |
| Chamfer angle | 30 ° |
| C | 37 mm |
| C1 | 32.2 mm |
| Ca1 | 28 mm |
| Ca2 | 27 mm |
| D1 | 65.8 mm |
| d1 | 51.4 mm |
| d2 | 55 mm |
| d3 | 75 mm |
| m | 2.7 mm |
| rmin | 0.6 mm |
| t | 0.8 mm |
| X | 28.5 mm |
| Cr | 80000 N |
| C0r | 111000 N |
| Cur | 16000 N, Fatigue limit load, radial |
| Limiting speed | 3150 1/min |
| mass | 0.56 kg |
INA SL045008-PP roller bearings, Cylindrical roller bearings, locating bearing, double row, full complement cylindrical roller set, lip seals on both sides.
Designation for snap ring WRE (not included in delivery): WRE68, Designation for retaining ring to DIN 471 (not included in delivery): 68X2.5
INA SL045008-PP bearing cross reference
INA SL182208-XL bearing
40mm x 80mm x 23mm
INA SL183008-XL bearing
40mm x 68mm x 21mm

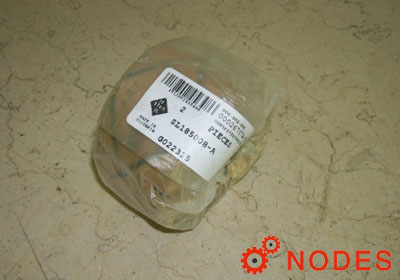

INA SL185008-XL bearing
