INA SL185017-A Bearing

SL185017-A INA cylindrical roller bearings

Also known as : NNCF5017CV

• Inside Diameter: 85 mm
• Outside Diameter: 130 mm
• Width: 60 mm
• Basic dynamic load rating: 300 kN
• Basic static load rating: 465 kN

Inquire Now

INA SL185017-A Bearing

SL185017-A INA

Part Number	SL185017-A
Brand	INA
Description	Cylindrical roller bearing SL1850..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
Tolerance class	PN	Normal (PN)
Number of rolling element rows	2	Double-row design
Main Dimensions & Performance Data
d	85 mm	Bore diameter
D	130 mm	Outside diameter
B	60 mm	Width
Cr	300 000 N	Basic dynamic load rating, radial
C0r	465 000 N	Basic static load rating, radial
Cur	69 000 N	Fatigue load limit, radial
nG	3050 1/min	Limiting speed
m	2.612 kg	Weight
Mounting dimensions
dc min.	99 mm	Minimum shaft shoulder
da min.	99 mm	Minimum diameter shaft shoulder
Da max.	116.5 mm	Maximum diameter of housing shoulder
ra max.	1.1 mm	Maximum recess radius
ra1 max.	2 mm	Maximum recess radius
De min.	116.1 mm	Minimum diameter of housing shoulder

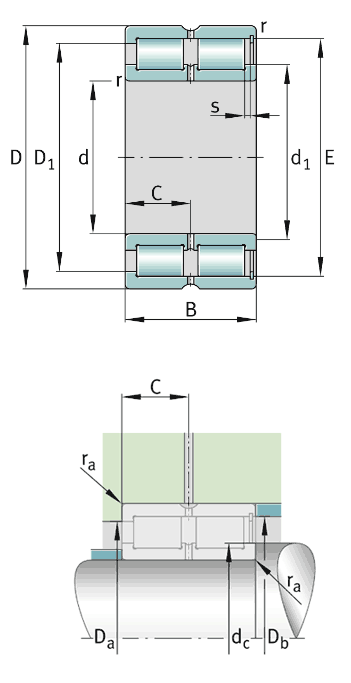

Dimensions
r min.	1.1 mm	Minimum chamfer dimension
r1 min.	2 mm	Minimum chamfer dimension
s	3.5 mm	Axial displacement
C	30 mm	Distance to lubrication hole
d1	99 mm	Maximum rib diameter inner ring
D1 min.	116.1 mm	Minimum rib diameter outer ring
E	122 mm	Raceway diameter outer ring
