INA 89330-M thrust roller bearings | 150x250x60mm
Also known as : 89330-M
- Inside Diameter: 150 mm
- Outside Diameter: 250 mm
- Width: 60 mm
- Basic dynamic load rating: 840 kN
- Basic static load rating: 3350 kN
INA 89330-M Bearing

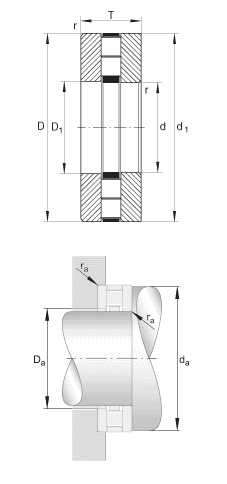

INA 89330-M Bearing details
Number | 89330-M | |
---|---|---|
Type | Thrust roller bearings | |
d | 150 mm | |
D | 250 mm | |
T | 60 mm | |
D1 | 154 mm | |
Da max | 162 mm | |
d1 | 250 mm | |
da min | 245 mm | |
ra max | 2,1 mm | |
rmin | 2,1 mm | |
m | 13,9 kg | Mass |
Ca | 840000 N | Basic dynamic load rating, axial |
C0a | 3350000 N | Basic static load rating, axial |
Cua | 300000 N | Fatigue limit load |
nG | 1440 1/min | Limiting speed |
nB | 540 1/min | Reference speed |
K89330-M | Allocated axial cylindrical roller and cage assembly | |
GS89330 | Allocated housing locating washer | |
WS89330 | Allocated shaft locating washer |
As INA bearing distributor, Nodes bearings have INA 89330-M single direction axial cylindrical roller bearings in stock.
