INA AXK1528 bearing | 15x28x2 mm
Also known as : AXK1528
- Inside Diameter: 15 mm
- Outside Diameter: 28 mm
- Width: 2 mm
- Basic dynamic load rating: 11.3 kN
- Basic static load rating: 36 kN

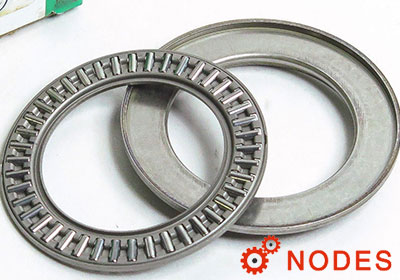

INA AXK1528 Bearing
INA AXK1528 Bearing details
| Number | AXK1528 | |
|---|---|---|
| Type |
Needle thrust bearing single direction, to DIN 5405-2 |
|
| Dc1 | 15mm | |
| Dc | 28mm | |
| Dw | 2mm | |
| Ea | 27mm | |
| Eb | 17mm | |
| m | 4g | Mass |
| Ca | 11300N | Basic dynamic load rating, axial |
| C0a | 36000N | Basic static load rating, axial |
| Cua | 3650N | Fatigue limit load |
| nG | 132001/min | Limiting speed |
| nϑr | 49501/min | Reference speed |
| AS1528 | Allocated axial bearing washer |
As INA bearing distributor, Nodes bearings have INA AXK1528 needle thrust bearings in stock. AXK1528, single direction, to DIN 5405-2.
INA AXK1528 bearing cross reference
INA K81102-TV bearing
15mm x 28mm x 3.5mm
INA 81102-TV bearing
15mm x 28mm x 9mm
