Nodes supplies INA ball thrust bearings that include 10, 19, 20, 29, 39, 41, 44, B, D, EW series. INA ball thrust bearings are available in a wide collection of ISO, DIN and popular inch and metric series. They are available as banded, 3 piece grooved race, 3 piece flat race and self aligning series. Races are made from through hardening and case hardening steels, selective sizes available from stainless steel. Cage materials include phenolic, steel, plastic, aluminum and bronze.
INA D5 thrust bearing | 19.05x37.313x14.3 mm
Nodes bearings have INA D5 Thrust ball bearings in stock, thrust ball bearing, D5 bearing dimensions: 19.05x37.313x14.3 mm, Cr: 18900N, C0r: 32500N.
- Brand: INA
- Inside Diameter: 19.05 mm
- Outside Diameter: 37.313 mm
- Width: 14.3 mm
- Basic dynamic load rating: 18.9 kN
- Basic static load rating: 18.9 kN

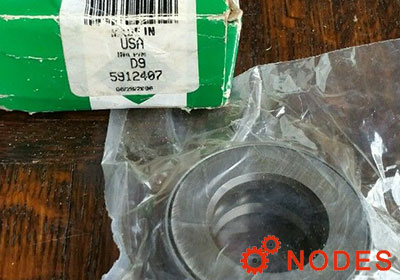

INA D9 thrust bearing | 25.4x50.013x15.875 mm
Nodes bearings have INA D9 Thrust ball bearings in stock, thrust ball bearing, D9 bearing dimensions: 25.4x50.013x15.875 mm, Cr: 29800N, C0r: 58000N.
- Brand: INA
- Inside Diameter: 25.4 mm
- Outside Diameter: 50.013 mm
- Width: 15.875 mm
- Basic dynamic load rating: 29.8 kN
- Basic static load rating: 29.8 kN

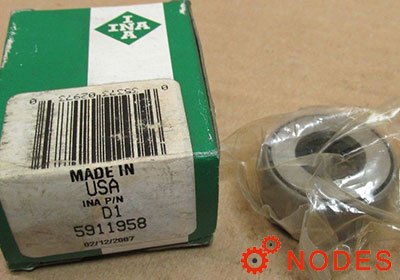

INA D1 thrust bearing | 12.7x30.963x14.3 mm
Nodes bearings have INA D1 Thrust ball bearings in stock, thrust ball bearing, D1 bearing dimensions: 12.7x30.963x14.3 mm, Cr: 17100N, C0r: 24900N.
- Brand: INA
- Inside Diameter: 12.7 mm
- Outside Diameter: 30.963 mm
- Width: 14.3 mm
- Basic dynamic load rating: 17.1 kN
- Basic static load rating: 17.1 kN

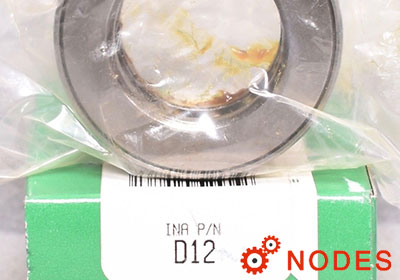

INA D12 thrust bearing | 30.163x53.188x15.875 mm
Nodes bearings have INA D12 Thrust ball bearings in stock, thrust ball bearing, D12 bearing dimensions: 30.163x53.188x15.875 mm, Cr: 30700N, C0r: 62000N.
- Brand: INA
- Inside Diameter: 30.163 mm
- Outside Diameter: 53.188 mm
- Width: 15.875 mm
- Basic dynamic load rating: 30.7 kN
- Basic static load rating: 30.7 kN

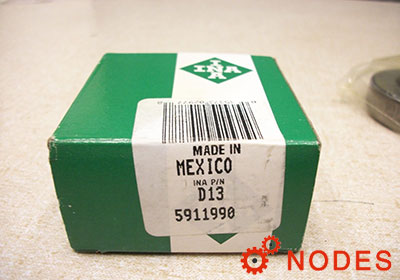

INA D13 thrust bearing | 31.75x59.538x15.875 mm
Nodes bearings have INA D13 Thrust ball bearings in stock, thrust ball bearing, D13 bearing dimensions: 31.75x59.538x15.875 mm, Cr: 32000N, C0r: 70000N.
- Brand: INA
- Inside Diameter: 31.75 mm
- Outside Diameter: 59.538 mm
- Width: 15.875 mm
- Basic dynamic load rating: 32 kN
- Basic static load rating: 32 kN

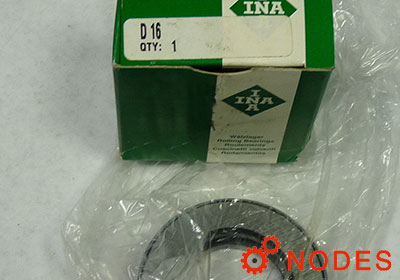

INA D16 thrust bearing | 36.513x65.888x15.875 mm
Nodes bearings have INA D16 Thrust ball bearings in stock, thrust ball bearing, D16 bearing dimensions: 36.513x65.888x15.875 mm, Cr: 32500N, C0r: 74000N.
- Brand: INA
- Inside Diameter: 36.513 mm
- Outside Diameter: 65.888 mm
- Width: 15.875 mm
- Basic dynamic load rating: 32.5 kN
- Basic static load rating: 32.5 kN

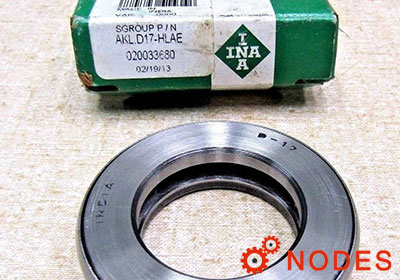

INA D17 thrust bearing | 38.1x65.888x15.875 mm
Nodes bearings have INA D17 Thrust ball bearings in stock, thrust ball bearing, D17 bearing dimensions: 38.1x65.888x15.875 mm, Cr: 34000N, C0r: 81000N.
- Brand: INA
- Inside Diameter: 38.1 mm
- Outside Diameter: 65.888 mm
- Width: 15.875 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN

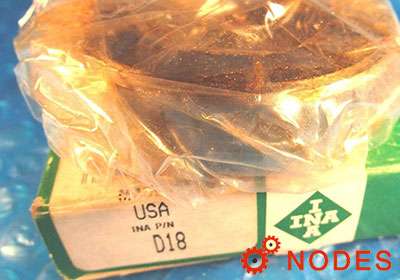

INA D18 thrust bearing | 39.688x65.888x15.875 mm
Nodes bearings have INA D18 Thrust ball bearings in stock, thrust ball bearing, D18 bearing dimensions: 39.688x65.888x15.875 mm, Cr: 34000N, C0r: 81000N.
- Brand: INA
- Inside Diameter: 39.688 mm
- Outside Diameter: 65.888 mm
- Width: 15.875 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN

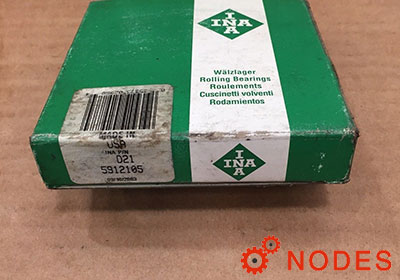

INA D21 thrust bearing | 44.45x78.588x20.65 mm
Nodes bearings have INA D21 Thrust ball bearings in stock, thrust ball bearing, D21 bearing dimensions: 44.45x78.588x20.65 mm, Cr: 47000N, C0r: 118000N.
- Brand: INA
- Inside Diameter: 44.45 mm
- Outside Diameter: 78.588 mm
- Width: 20.65 mm
- Basic dynamic load rating: 47 kN
- Basic static load rating: 47 kN

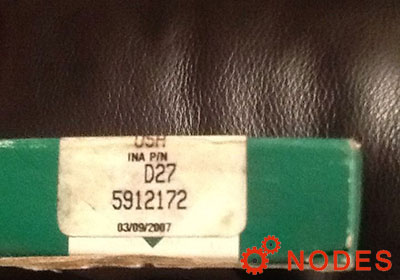

INA D27 thrust bearing | 53.975x91.288x20.65 mm
Nodes bearings have INA D27 Thrust ball bearings in stock, thrust ball bearing, D27 bearing dimensions: 53.975x91.288x20.65 mm, Cr: 49000N, C0r: 133000N.
- Brand: INA
- Inside Diameter: 53.975 mm
- Outside Diameter: 91.288 mm
- Width: 20.65 mm
- Basic dynamic load rating: 49 kN
- Basic static load rating: 49 kN

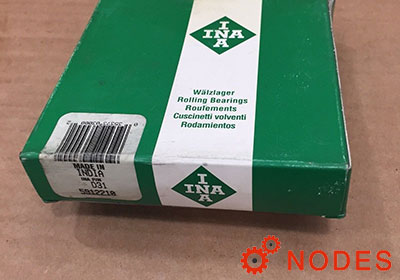

INA D31 thrust bearing | 60.325x97.638x20.65 mm
Nodes bearings have INA D31 Thrust ball bearings in stock, thrust ball bearing, D31 bearing dimensions: 60.325x97.638x20.65 mm, Cr: 51000N, C0r: 145000N.
- Brand: INA
- Inside Diameter: 60.325 mm
- Outside Diameter: 97.638 mm
- Width: 20.65 mm
- Basic dynamic load rating: 51 kN
- Basic static load rating: 51 kN

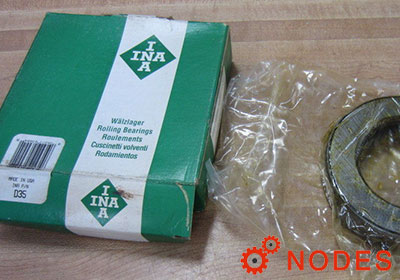

INA D35 thrust bearing | 66.675x110.338x25.4 mm
Nodes bearings have INA D35 Thrust ball bearings in stock, thrust ball bearing, D35 bearing dimensions: 66.675x110.338x25.4 mm, Cr: 81000N, C0r: 218000N.
- Brand: INA
- Inside Diameter: 66.675 mm
- Outside Diameter: 110.338 mm
- Width: 25.4 mm
- Basic dynamic load rating: 81 kN
- Basic static load rating: 81 kN
INA D6 thrust bearing | 20.638x37.313x14.3 mm
Nodes bearings have INA D6 Thrust ball bearings in stock, thrust ball bearing, D6 bearing dimensions: 20.638x37.313x14.3 mm, Cr: 18900N, C0r: 32500N.
- Brand: INA
- Inside Diameter: 20.638 mm
- Outside Diameter: 37.313 mm
- Width: 14.3 mm
- Basic dynamic load rating: 18.9 kN
- Basic static load rating: 18.9 kN
INA D7 thrust bearing | 22.225x46.838x15.875 mm
Nodes bearings have INA D7 Thrust ball bearings in stock, thrust ball bearing, D7 bearing dimensions: 22.225x46.838x15.875 mm, Cr: 29400N, C0r: 54000N.
- Brand: INA
- Inside Diameter: 22.225 mm
- Outside Diameter: 46.838 mm
- Width: 15.875 mm
- Basic dynamic load rating: 29.4 kN
- Basic static load rating: 29.4 kN
INA D8 thrust bearing | 23.813x46.838x15.875 mm
Nodes bearings have INA D8 Thrust ball bearings in stock, thrust ball bearing, D8 bearing dimensions: 23.813x46.838x15.875 mm, Cr: 29400N, C0r: 54000N.
- Brand: INA
- Inside Diameter: 23.813 mm
- Outside Diameter: 46.838 mm
- Width: 15.875 mm
- Basic dynamic load rating: 29.4 kN
- Basic static load rating: 29.4 kN
INA D4 thrust bearing | 17.463x34.138x14.3 mm
Nodes bearings have INA D4 Thrust ball bearings in stock, thrust ball bearing, D4 bearing dimensions: 17.463x34.138x14.3 mm, Cr: 18200N, C0r: 29800N.
- Brand: INA
- Inside Diameter: 17.463 mm
- Outside Diameter: 34.138 mm
- Width: 14.3 mm
- Basic dynamic load rating: 18.2 kN
- Basic static load rating: 18.2 kN
INA D3 thrust bearing | 15.875x34.138x14.3 mm
Nodes bearings have INA D3 Thrust ball bearings in stock, thrust ball bearing, D3 bearing dimensions: 15.875x34.138x14.3 mm, Cr: 18200N, C0r: 29800N.
- Brand: INA
- Inside Diameter: 15.875 mm
- Outside Diameter: 34.138 mm
- Width: 14.3 mm
- Basic dynamic load rating: 18.2 kN
- Basic static load rating: 18.2 kN
INA D2 thrust bearing | 14.288x30.963x14.3 mm
Nodes bearings have INA D2 Thrust ball bearings in stock, thrust ball bearing, D2 bearing dimensions: 14.288x30.963x14.3 mm, Cr: 17100N, C0r: 24900N.
- Brand: INA
- Inside Diameter: 14.288 mm
- Outside Diameter: 30.963 mm
- Width: 14.3 mm
- Basic dynamic load rating: 17.1 kN
- Basic static load rating: 17.1 kN
INA D10 thrust bearing | 26.988x50.013x15.875 mm
Nodes bearings have INA D10 Thrust ball bearings in stock, thrust ball bearing, D10 bearing dimensions: 26.988x50.013x15.875 mm, Cr: 29800N, C0r: 58000N.
- Brand: INA
- Inside Diameter: 26.988 mm
- Outside Diameter: 50.013 mm
- Width: 15.875 mm
- Basic dynamic load rating: 29.8 kN
- Basic static load rating: 29.8 kN
INA D11 thrust bearing | 28.575x53.188x15.875 mm
Nodes bearings have INA D11 Thrust ball bearings in stock, thrust ball bearing, D11 bearing dimensions: 28.575x53.188x15.875 mm, Cr: 30700N, C0r: 62000N.
- Brand: INA
- Inside Diameter: 28.575 mm
- Outside Diameter: 53.188 mm
- Width: 15.875 mm
- Basic dynamic load rating: 30.7 kN
- Basic static load rating: 30.7 kN
INA D14 thrust bearing | 33.338x59.538x15.875 mm
Nodes bearings have INA D14 Thrust ball bearings in stock, thrust ball bearing, D14 bearing dimensions: 33.338x59.538x15.875 mm, Cr: 32000N, C0r: 70000N.
- Brand: INA
- Inside Diameter: 33.338 mm
- Outside Diameter: 59.538 mm
- Width: 15.875 mm
- Basic dynamic load rating: 32 kN
- Basic static load rating: 32 kN
INA D15 thrust bearing | 34.925x62.713x15.875 mm
Nodes bearings have INA D15 Thrust ball bearings in stock, thrust ball bearing, D15 bearing dimensions: 34.925x62.713x15.875 mm, Cr: 32500N, C0r: 74000N.
- Brand: INA
- Inside Diameter: 34.925 mm
- Outside Diameter: 62.713 mm
- Width: 15.875 mm
- Basic dynamic load rating: 32.5 kN
- Basic static load rating: 32.5 kN
INA D19 thrust bearing | 41.275x75.413x20.65 mm
Nodes bearings have INA D19 Thrust ball bearings in stock, thrust ball bearing, D19 bearing dimensions: 41.275x75.413x20.65 mm, Cr: 46000N, C0r: 111000N.
- Brand: INA
- Inside Diameter: 41.275 mm
- Outside Diameter: 75.413 mm
- Width: 20.65 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 46 kN
INA D20 thrust bearing | 42.863x75.413x20.65 mm
Nodes bearings have INA D20 Thrust ball bearings in stock, thrust ball bearing, D20 bearing dimensions: 42.863x75.413x20.65 mm, Cr: 46000N, C0r: 111000N.
- Brand: INA
- Inside Diameter: 42.863 mm
- Outside Diameter: 75.413 mm
- Width: 20.65 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 46 kN
INA D22 thrust bearing | 46.038x78.588x20.65 mm
Nodes bearings have INA D22 Thrust ball bearings in stock, thrust ball bearing, D22 bearing dimensions: 46.038x78.588x20.65 mm, Cr: 47000N, C0r: 118000N.
- Brand: INA
- Inside Diameter: 46.038 mm
- Outside Diameter: 78.588 mm
- Width: 20.65 mm
- Basic dynamic load rating: 47 kN
- Basic static load rating: 47 kN
INA D23 thrust bearing | 47.625x81.763x20.65 mm
Nodes bearings have INA D23 Thrust ball bearings in stock, thrust ball bearing, D23 bearing dimensions: 47.625x81.763x20.65 mm, Cr: 48000N, C0r: 122000N.
- Brand: INA
- Inside Diameter: 47.625 mm
- Outside Diameter: 81.763 mm
- Width: 20.65 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 48 kN
INA D24 thrust bearing | 49.213x81.763x20.65 mm
Nodes bearings have INA D24 Thrust ball bearings in stock, thrust ball bearing, D24 bearing dimensions: 49.213x81.763x20.65 mm, Cr: 48000N, C0r: 122000N.
- Brand: INA
- Inside Diameter: 49.213 mm
- Outside Diameter: 81.763 mm
- Width: 20.65 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 48 kN
INA D25 thrust bearing | 50.8x84.938x20.65 mm
Nodes bearings have INA D25 Thrust ball bearings in stock, thrust ball bearing, D25 bearing dimensions: 50.8x84.938x20.65 mm, Cr: 48000N, C0r: 129000N.
- Brand: INA
- Inside Diameter: 50.8 mm
- Outside Diameter: 84.938 mm
- Width: 20.65 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 48 kN
INA D26 thrust bearing | 52.388x84.938x20.65 mm
Nodes bearings have INA D26 Thrust ball bearings in stock, thrust ball bearing, D26 bearing dimensions: 52.388x84.938x20.65 mm, Cr: 48000N, C0r: 129000N.
- Brand: INA
- Inside Diameter: 52.388 mm
- Outside Diameter: 84.938 mm
- Width: 20.65 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 48 kN
INA D28 thrust bearing | 55.563x91.288x20.65 mm
Nodes bearings have INA D28 Thrust ball bearings in stock, thrust ball bearing, D28 bearing dimensions: 55.563x91.288x20.65 mm, Cr: 49000N, C0r: 133000N.
- Brand: INA
- Inside Diameter: 55.563 mm
- Outside Diameter: 91.288 mm
- Width: 20.65 mm
- Basic dynamic load rating: 49 kN
- Basic static load rating: 49 kN
INA D29 thrust bearing | 57.15x94.463x20.65 mm
Nodes bearings have INA D29 Thrust ball bearings in stock, thrust ball bearing, D29 bearing dimensions: 57.15x94.463x20.65 mm, Cr: 50000N, C0r: 140000N.
- Brand: INA
- Inside Diameter: 57.15 mm
- Outside Diameter: 94.463 mm
- Width: 20.65 mm
- Basic dynamic load rating: 50 kN
- Basic static load rating: 50 kN
INA D30 thrust bearing | 58.738x94.463x20.65 mm
Nodes bearings have INA D30 Thrust ball bearings in stock, thrust ball bearing, D30 bearing dimensions: 58.738x94.463x20.65 mm, Cr: 50000N, C0r: 140000N.
- Brand: INA
- Inside Diameter: 58.738 mm
- Outside Diameter: 94.463 mm
- Width: 20.65 mm
- Basic dynamic load rating: 50 kN
- Basic static load rating: 50 kN
INA D32 thrust bearing | 61.913x97.638x20.65 mm
Nodes bearings have INA D32 Thrust ball bearings in stock, thrust ball bearing, D32 bearing dimensions: 61.913x97.638x20.65 mm, Cr: 51000N, C0r: 145000N.
- Brand: INA
- Inside Diameter: 61.913 mm
- Outside Diameter: 97.638 mm
- Width: 20.65 mm
- Basic dynamic load rating: 51 kN
- Basic static load rating: 51 kN
INA D33 thrust bearing | 63.5x100.813x20.65 mm
Nodes bearings have INA D33 Thrust ball bearings in stock, thrust ball bearing, D33 bearing dimensions: 63.5x100.813x20.65 mm, Cr: 51000N, C0r: 151000N.
- Brand: INA
- Inside Diameter: 63.5 mm
- Outside Diameter: 100.813 mm
- Width: 20.65 mm
- Basic dynamic load rating: 51 kN
- Basic static load rating: 51 kN
INA D34 thrust bearing | 65.088x100.813x20.65 mm
Nodes bearings have INA D34 Thrust ball bearings in stock, thrust ball bearing, D34 bearing dimensions: 65.088x100.813x20.65 mm, Cr: 51000N, C0r: 151000N.
- Brand: INA
- Inside Diameter: 65.088 mm
- Outside Diameter: 100.813 mm
- Width: 20.65 mm
- Basic dynamic load rating: 51 kN
- Basic static load rating: 51 kN
INA D36 thrust bearing | 68.263x110.338x25.4 mm
Nodes bearings have INA D36 Thrust ball bearings in stock, thrust ball bearing, D36 bearing dimensions: 68.263x110.338x25.4 mm, Cr: 81000N, C0r: 218000N.
- Brand: INA
- Inside Diameter: 68.263 mm
- Outside Diameter: 110.338 mm
- Width: 25.4 mm
- Basic dynamic load rating: 81 kN
- Basic static load rating: 81 kN
INA D37 thrust bearing | 69.85x113.513x25.4 mm
Nodes bearings have INA D37 Thrust ball bearings in stock, thrust ball bearing, D37 bearing dimensions: 69.85x113.513x25.4 mm, Cr: 81000N, C0r: 227000N.
- Brand: INA
- Inside Diameter: 69.85 mm
- Outside Diameter: 113.513 mm
- Width: 25.4 mm
- Basic dynamic load rating: 81 kN
- Basic static load rating: 81 kN
INA D38 thrust bearing | 71.438x113.513x25.4 mm
Nodes bearings have INA D38 Thrust ball bearings in stock, thrust ball bearing, D38 bearing dimensions: 71.438x113.513x25.4 mm, Cr: 81000N, C0r: 227000N.
- Brand: INA
- Inside Diameter: 71.438 mm
- Outside Diameter: 113.513 mm
- Width: 25.4 mm
- Basic dynamic load rating: 81 kN
- Basic static load rating: 81 kN
