INA LFR5302-10-2Z Bearing

INA LFR5302-10-2Z track rollers

Also known as : LFR5302-10-2Z

  • Inside Diameter: 15 mm
  • Outside Diameter: 47 mm
  • Width: 19 mm
  • Basic dynamic load rating: 14.5 kN
  • Basic static load rating: 9.1 kN

Inquire Now


INA LFR5302-10-2Z Bearing

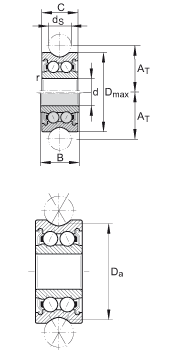

INA LFR5302-10-2Z Bearing details

model LFR5302-10-2Z
d 15 mm
Dmax 47 mm
B 19 mm
AT 26.65 mm
C 19 mm
Da 44.25 mm, Rolling contact diameter
ds 10 mm
rmin 1 mm
Cr w 14500 N, Effective dynamic load rating as track roller (radial)
C0r w 9100 N, Effective static load rating as track roller (radial)
Cur w 455 N, Fatigue limit load
Fr per 9400 N, Maximum radial load (dynamic) on track roller
F0r per 18200 N, Maximum radial load (static) on track roller
mass 0.17 kg

INA LFR5302-10-2Z track rollers, locating bearing track rollers, double row, gap seals on both sides.
