KAYDON JB025CP0 thin section bearings
Also known as : JB025CP0
- Inside Diameter: 2.5 inches
- Outside Diameter: 3.125 inches
- Width: 0.3125 inches
- Basic dynamic load rating: 644 lbs
- Basic static load rating: 1140 lbs
KAYDON JB025CP0 Bearing
KAYDON JB025CP0 Bearing details
| Kaydon part number | JB025CP0 |
|---|---|
| Bore | 2.500 inches |
| Outside dia. | 3.125 inches |
| Width | 0.3125 inches |
| Land dia. L1 | 2.699 inches |
| Land dia. L2 | 2.925 inches |
| Dynamic Kaydon radial | 644 lbs |
| Dynamic ISO radial | 1,549 lbs |
| Static Radial | 1,140 lbs |
| Limiting speeds | 2,580 RPM |
| Torque max. no load | 8 in-oz |
| Approx. weight | 0.19 lbs |
As KAYDON bearings distributor, Nodes bearings have KAYDON JB025CP0 thin section bearings in stock, Reali-Slim sealed bearings, JB series, Type C, radial contact.
KAYDON JB025CP0 bearing cross reference
KAYDON JB025XP0 bearing
2.500" x 3.125" x 0.3125"
KAYDON KA025AR0 bearing
2.500" x 3.000" x 0.25"

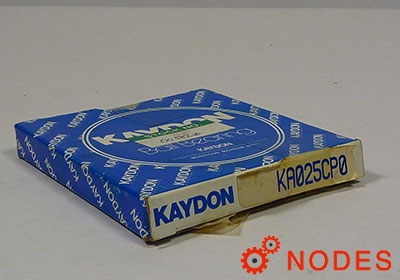

KAYDON KA025CP0 bearing
2.500" x 3.000" x 0.25"

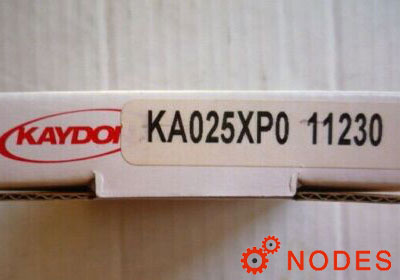

KAYDON KA025XP0 bearing
2.500" x 3.000" x 0.25"

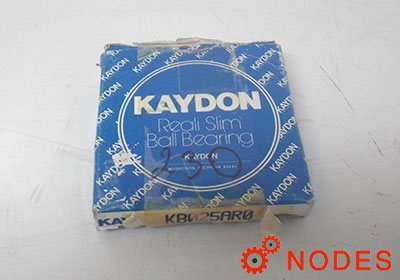

KAYDON KB025AR0 bearing
2.500" x 3.125" x 0.3125"
KAYDON KB025CP0 bearing
2.500" x 3.125" x 0.3125"

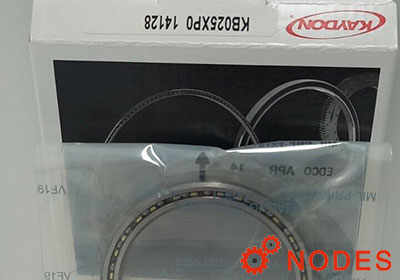

KAYDON KB025XP0 bearing
2.500" x 3.125" x 0.3125"
KAYDON JA025CP0 bearing
2.500" x 3.000" x 0.25"
KAYDON JA025XP0 bearing
2.500" x 3.000" x 0.25"
KAYDON SA025AR0 bearing
2.500" x 3.000" x 0.25"
KAYDON SA025CP0 bearing
2.500" x 3.000" x 0.25"
