KAYDON JB050CP0 thin section bearings
Also known as : JB050CP0
- Inside Diameter: 5 inches
- Outside Diameter: 5.625 inches
- Width: 0.3125 inches
- Basic dynamic load rating: 933 lbs
- Basic static load rating: 2150 lbs
KAYDON JB050CP0 Bearing
KAYDON JB050CP0 Bearing details
| Kaydon part number | JB050CP0 |
|---|---|
| Bore | 5.000 inches |
| Outside dia. | 5.625 inches |
| Width | 0.3125 inches |
| Land dia. L1 | 5.199 inches |
| Land dia. L2 | 5.425 inches |
| Dynamic Kaydon radial | 933 lbs |
| Dynamic ISO radial | 1,976 lbs |
| Static Radial | 2,150 lbs |
| Limiting speeds | 1,360 RPM |
| Torque max. no load | 36 in-oz |
| Approx. weight | 0.37 lbs |
As KAYDON bearings distributor, Nodes bearings have KAYDON JB050CP0 thin section bearings in stock, Reali-Slim sealed bearings, JB series, Type C, radial contact.
KAYDON JB050CP0 bearing cross reference
KAYDON JB050XP0 bearing
5.000" x 5.625" x 0.3125"
KAYDON KA050AR0 bearing
5.000" x 5.500" x 0.25"

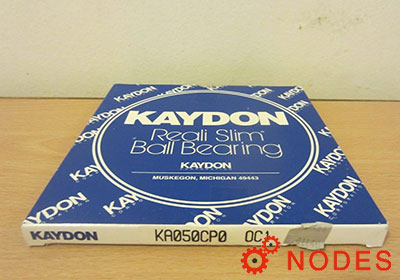

KAYDON KA050CP0 bearing
5.000" x 5.500" x 0.25"
KAYDON KA050XP0 bearing
5.000" x 5.500" x 0.25"
KAYDON KB050AR0 bearing
5.000" x 5.625" x 0.3125"
KAYDON KB050CP0 bearing
5.000" x 5.625" x 0.3125"
KAYDON KB050XP0 bearing
5.000" x 5.625" x 0.3125"

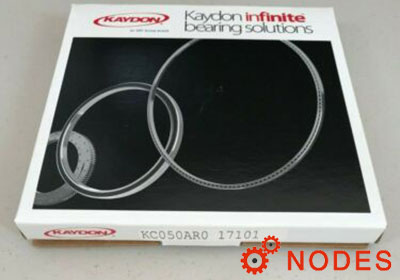

KAYDON KC050AR0 bearing
5.000" x 5.750" x 0.375"
KAYDON KC050CP0 bearing
5.000" x 5.750" x 0.375"
KAYDON KC050XP0 bearing
5.000" x 5.750" x 0.375"
KAYDON KD050AR0 bearing
5.000" x 6.000" x 0.5"
