KAYDON JU065CP0 Bearing

KAYDON JU065CP0 thin section bearings

Also known as : JU065CP0

  • Inside Diameter: 6.5 inches
  • Outside Diameter: 7.25 inches
  • Width: 0.5 inches
  • Basic dynamic load rating: 1397 lbs
  • Basic static load rating: 3315 lbs

Inquire Now


KAYDON JU065CP0 Bearing

KAYDON JU065CP0 Bearing details

Kaydon part number JU065CP0
Bore 6.500 inches
Outside dia. 7.250 inches
Width 0.5 inches
Land dia. L1 6.650 inches
Land dia. L2 7.043 inches
Dynamic Kaydon radial 1,397 lbs
Dynamic ISO radial 2,751 lbs
Static Radial 3,315 lbs
Limiting speeds 1,000 RPM
Torque max. no load 7.0 in-oz
Approx. weight 0.87 lbs

As KAYDON bearings distributor, Nodes bearings have KAYDON JU065CP0 thin section bearings in stock, Reali-Slim sealed bearings, JU series, Type C, radial contact.

KAYDON JU065CP0 bearing cross reference

KAYDON JB065CP0 bearing
6.500" x 7.125" x 0.3125"
KAYDON JB065XP0 bearing
6.500" x 7.125" x 0.3125"
KAYDON KA065AR0 bearing
6.500" x 7.000" x 0.25"
KAYDON KA065CP0 bearing
6.500" x 7.000" x 0.25"

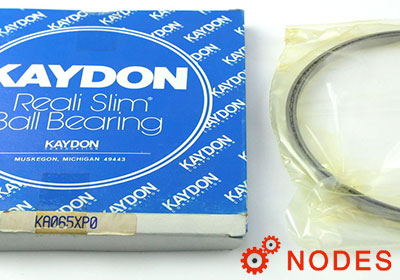

KAYDON KA065XP0 bearing
6.500" x 7.000" x 0.25"
KAYDON KB065AR0 bearing
6.500" x 7.125" x 0.3125"
KAYDON KB065CP0 bearing
6.500" x 7.125" x 0.3125"
KAYDON KB065XP0 bearing
6.500" x 7.125" x 0.3125"
KAYDON KC065AR0 bearing
6.500" x 7.250" x 0.375"
KAYDON KC065CP0 bearing
6.500" x 7.250" x 0.375"
KAYDON KC065XP0 bearing
6.500" x 7.250" x 0.375"
KAYDON KD065AR0 bearing
6.500" x 7.500" x 0.5"

KAYDON sealed thin section ball bearings
