KAYDON KA020AR0 thin section bearings
Also known as : KA020AR0
- Inside Diameter: 2 inches
- Outside Diameter: 2.5 inches
- Width: 0.25 inches
- Basic dynamic load rating: 405 lbs
- Basic static load rating: 790 lbs
KAYDON KA020AR0 Bearing
KAYDON KA020AR0 Bearing details
| Kaydon part number | KA020AR0 |
|---|---|
| Bore | 2.000 inches |
| Outside dia. | 2.500 inches |
| Width | 0.25 inches |
| Land dia. L1 | 2.186 inches |
| Land dia. L2 | 2.314 inches |
| C'Bore dia. L3 | 2.369 inches |
| Dynamic Kaydon radial | 405 lbs |
| Dynamic ISO radial | 1,065 lbs |
| Dynamic Thrust | 960 lbs |
| Static Radial | 790 lbs |
| Static Thrust | 2,280 lbs |
| Approx. weight | 0.100 lbs |
As KAYDON bearings distributor, Nodes bearings have KAYDON KA020AR0 thin section bearings in stock, Reali-Slim open bearings, KA series Type A -- angular contact. KA020AR0 bearing, inner ring width: 0.25", Outer ring width: 0.25".
KAYDON KA020AR0 bearing cross reference
KAYDON JB020CP0 bearing
2.000" x 2.625" x 0.3125"

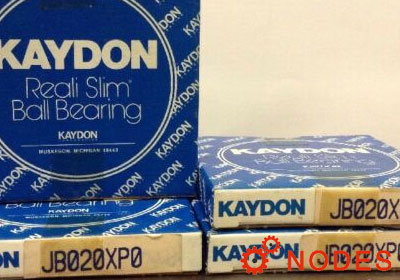

KAYDON JB020XP0 bearing
2.000" x 2.625" x 0.3125"
KAYDON KA020CP0 bearing
2.000" x 2.500" x 0.25"

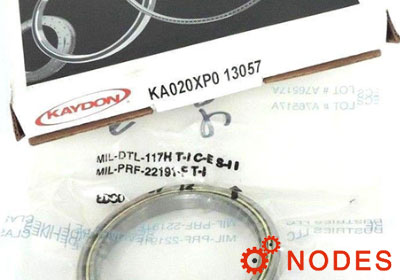

KAYDON KA020XP0 bearing
2.000" x 2.500" x 0.25"

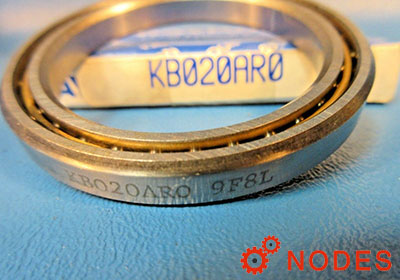

KAYDON KB020AR0 bearing
2.000" x 2.625" x 0.3125"
KAYDON KB020CP0 bearing
2.000" x 2.625" x 0.3125"

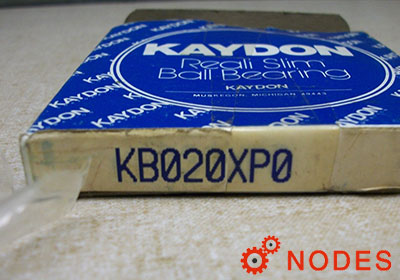

KAYDON KB020XP0 bearing
2.000" x 2.625" x 0.3125"
KAYDON JA020CP0 bearing
2.000" x 2.500" x 0.25"

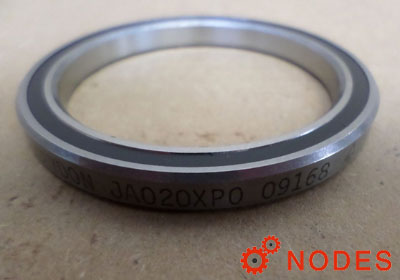

KAYDON JA020XP0 bearing
2.000" x 2.500" x 0.25"
KAYDON SA020AR0 bearing
2.000" x 2.500" x 0.25"
KAYDON SA020CP0 bearing
2.000" x 2.500" x 0.25"
