KAYDON KA040AR0 Bearing

KAYDON KA040AR0 thin section bearings

Also known as : KA040AR0

  • Inside Diameter: 4 inches
  • Outside Diameter: 4.5 inches
  • Width: 0.25 inches
  • Basic dynamic load rating: 595 lbs
  • Basic static load rating: 1490 lbs

Inquire Now


KAYDON KA040AR0 Bearing

KAYDON KA040AR0 Bearing details

Kaydon part number KA040AR0
Bore 4.000 inches
Outside dia. 4.500 inches
Width 0.25 inches
Land dia. L1 4.186 inches
Land dia. L2 4.314 inches
C'Bore dia. L3 4.367 inches
Dynamic Kaydon radial 595 lbs
Dynamic ISO radial 1,353 lbs
Dynamic Thrust 1,470 lbs
Static Radial 1,490 lbs
Static Thrust 4,300 lbs
Approx. weight 0.190 lbs

As KAYDON bearings distributor, Nodes bearings have KAYDON KA040AR0 thin section bearings in stock, Reali-Slim open bearings, KA series Type A -- angular contact.

KAYDON KA040AR0 bearing cross reference

KAYDON JB040CP0 bearing
4.000" x 4.625" x 0.3125"
KAYDON JU040CP0 bearing
4.000" x 4.750" x 0.5"
KAYDON JB040XP0 bearing
4.000" x 4.625" x 0.3125"

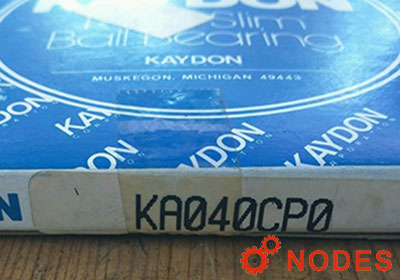

KAYDON KA040CP0 bearing
4.000" x 4.500" x 0.25"

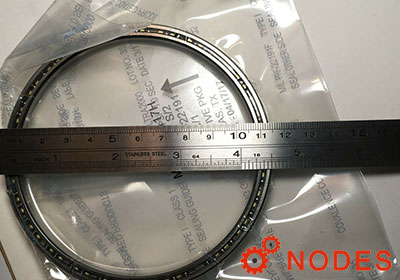

KAYDON KA040XP0 bearing
4.000" x 4.500" x 0.25"
KAYDON KB040AR0 bearing
4.000" x 4.625" x 0.3125"
KAYDON KB040CP0 bearing
4.000" x 4.625" x 0.3125"
KAYDON KB040XP0 bearing
4.000" x 4.625" x 0.3125"
KAYDON KC040AR0 bearing
4.000" x 4.750" x 0.375"
KAYDON KC040CP0 bearing
4.000" x 4.750" x 0.375"
KAYDON KC040XP0 bearing
4.000" x 4.750" x 0.375"

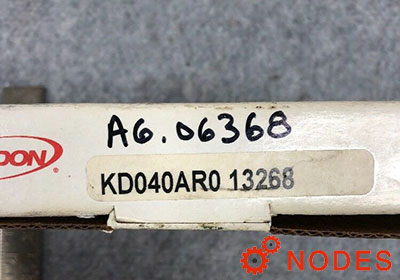

KAYDON KD040AR0 bearing
4.000" x 5.000" x 0.5"
