KAYDON KAA10CL0 Bearing

KAYDON KAA10CL0 thin section bearings, radial contact

Also known as : KAA10CL0

  • Inside Diameter: 1 inches
  • Outside Diameter: 1.375 inches
  • Width: 0.1875 inches
  • Basic dynamic load rating: 188 lbs
  • Basic static load rating: 290 lbs

Inquire Now


KAYDON KAA10CL0 Bearing

KAYDON KAA10CL0 Bearing details

Kaydon part number KAA10CL0
Bore 1.000 inches
Outside dia. 1.375 inches
Width 0.1875 inches
Land dia. L1 1.140 inches
Land dia. L2 1.235 inches
Dynamic Kaydon radial 188 lbs
Dynamic ISO radial 558 lbs
Static Radial 290 lbs
Approx. weight 0.026 lbs

As KAYDON bearings distributor, Nodes bearings have KAYDON KAA10CL0 open thin section bearings in stock, Reali-Slim open bearings, KAA series, Type C, radial contact.

KAYDON KAA10CL0 bearing cross reference

KAYDON KAA10AG0 bearing
1.000" x 1.375" x 0.1875"
KAYDON KAA10XL0 bearing
1.000" x 1.375" x 0.1875"

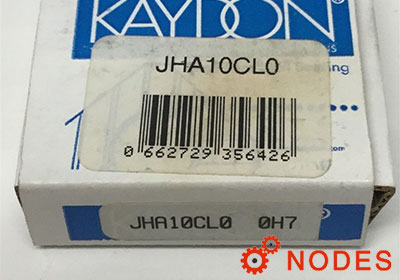

KAYDON JHA10CL0 bearing
1.000" x 1.375" x 0.25"

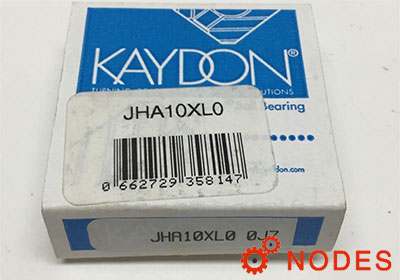

KAYDON JHA10XL0 bearing
1.000" x 1.375" x 0.25"
KAYDON SAA10AG0 bearing
1.000" x 1.375" x 0.1875"
KAYDON SAA10CL0 bearing
1.000" x 1.375" x 0.1875"
KAYDON SAA10XL0 bearing
1.000" x 1.375" x 0.1875"
INA CSCAA010-TV bearing
25.4mm x 34.925mm x 4.763mm
