NSK 6001ZZNR single row deep groove ball bearing
Also known as : 6001ZZNR, 6001-2ZNR
- Inside Diameter: 12 mm
- Outside Diameter: 28 mm
- Width: 8 mm
- Basic dynamic load rating: 5.1 kN
- Basic static load rating: 2.37 kN
NSK 6001ZZNR Bearing
NSK 6001ZZNR Bearing details
| model | 6001ZZNR |
|---|---|
| d | 12 mm |
| D | 28 mm |
| B | 8 mm |
| rmin. | 0.3 mm |
| Cr | 5100 N |
| C0r | 2370 N |
| Limiting speeds | 28000 min-1 (Grease) |
| a | 1.35 mm |
| b | 0.87 mm |
| D1 | 26.5 mm |
| r0 | 0.2 mm |
| rN | 0.3 mm |
| D2 | 30.7 mm |
| f | 0.84 mm |
| Mass | 0.022 kg (approx.) |

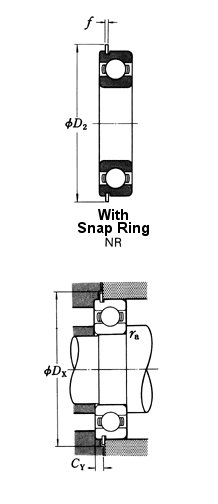

ZZ: With Two Shielded. NR: with snap ring
