NSK 6009ZZ deep groove ball bearing
Also known as : 6009ZZ, 6009-2Z
- Inside Diameter: 45 mm
- Outside Diameter: 75 mm
- Width: 16 mm
- Basic dynamic load rating: 20.9 kN
- Basic static load rating: 15.2 kN
NSK 6009ZZ Bearing

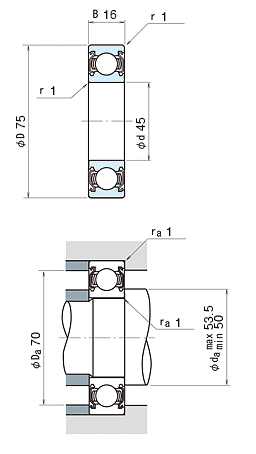

NSK 6009ZZ Bearing details
| model | 6009ZZ |
|---|---|
| d | 45 mm |
| D | 75 mm |
| B | 16 mm |
| rmin. | 1 mm |
| Cr | 20900 N |
| C0r | 15200 N |
| Limiting speeds | 9000 min-1 (Grease) |
| Mass | 0.241 kg (approx.) |
NSK 6009ZZ ball bearings, deep groove ball bearing, ZZ: With Two Shielded.
NSK 6009ZZ bearing cross reference
SKF 6009-2Z bearing
45mm x 75mm x 16mm
SKF 6009-2RS1 bearing
45mm x 75mm x 16mm
SKF 6009-2RS1/C3 bearing
45mm x 75mm x 16mm
NSK 6809 bearing
45mm x 58mm x 7mm
NSK 6909 bearing
45mm x 68mm x 12mm
NSK 16009 bearing
45mm x 75mm x 10mm
NSK 6009 bearing
45mm x 75mm x 16mm
NSK 6209 bearing
45mm x 85mm x 19mm
NSK 6309 bearing
45mm x 100mm x 25mm
NSK 6909ZZ bearing
45mm x 68mm x 12mm
NSK 6209ZZ bearing
45mm x 85mm x 19mm
