NSK 6022ZZ Bearing

NSK 6022ZZ Deep groove ball bearings

Also known as : 6022ZZ, 6022-2Z

• Inside Diameter: 110 mm
• Outside Diameter: 170 mm
• Width: 28 mm
• Basic dynamic load rating: 85 kN
• Basic static load rating: 73 kN

Inquire Now

NSK 6022ZZ Bearing

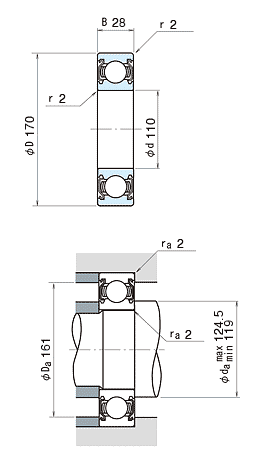

model	6022ZZ
d	110 mm
D	170 mm
B	28 mm
rmin.	2.0 mm
Cr	85000 N 8650 kgf
C0r	73000 N 7450 kgf
Limiting speeds	3800 min-1 (Grease)
f0	15.5 (Factor)
da min	119 mm
da max	124.5 mm
Da	161 mm
ra	2 mm
Mass	1.940 kg (approx.)

NSK 6022ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
