NSK 6208DDU Bearing

NSK 6208DDU Deep groove ball bearings

Also known as : 6208DDU, 6208LLU, 6208-2RS1, 6208-2RSR

• Inside Diameter: 40 mm
• Outside Diameter: 80 mm
• Width: 18 mm
• Basic dynamic load rating: 29.1 kN
• Basic static load rating: 17.9 kN

Inquire Now

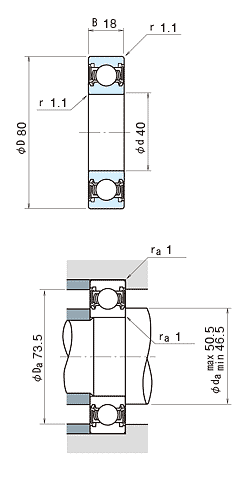

NSK 6208DDU Bearing

model	6208DDU
d	40 mm
D	80 mm
B	18 mm
rmin.	1.1 mm
Cr	29100 N 2970 kgf
C0r	17900 N 1820 kgf
Limiting speeds	5600 min-1 (Grease)
f0	14 (Factor)
da min	46.5 mm
da max	50.5 mm
Da	73.5 mm
ra	1 mm
Mass	0.366 kg (approx.)

NSK 6208DDU ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
