NSK 629 bearing | 9.0x26x8.0mm
Also known as : 629
- Inside Diameter: 9 mm
- Outside Diameter: 26 mm
- Width: 8 mm
- Basic dynamic load rating: 4.55 kN
- Basic static load rating: 1.97 kN
NSK 629 Bearing
NSK 629 Bearing details
| NSK number | 629 |
|---|---|
| Type | Miniature ball bearings, Open type |
| d | 9.0 mm |
| D | 26 mm |
| B | 8.0 mm |
| rmin. | 0.30 mm |
| Cr | 4550 N |
| C0r | 1970 N |
| Limiting speeds | 28000 min-1 (Grease) |
| Limiting speeds | 34000 min-1 (Oil) |
| da | 11.0 mm |
| Da | 24.0 mm |
| ra | 0.30 mm |
| Mass | 19.50 g (approx.) |
Nodes bearings have NSK 629 bearings in stock, Open type.
NSK 629 bearing cross reference

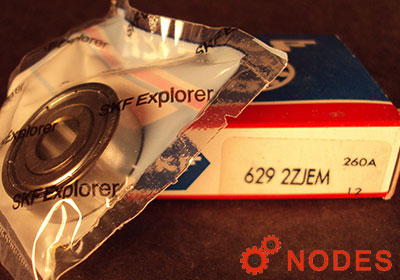

SKF 629-2Z bearing
9mm x 26mm x 8mm
FAG 629 bearing
9mm x 26mm x 8mm
TIMKEN 629-ZZ bearing
9mm x 26mm x 8mm
TIMKEN 629-2RS bearing
9mm x 26mm x 8mm
TIMKEN 629-2RS-C3 bearing
9mm x 26mm x 8mm
TIMKEN 629-2RZ bearing
9mm x 26mm x 8mm
TIMKEN 629 bearing
9mm x 26mm x 8mm
NSK 689 bearing
9.0mm x 17mm x 4.0mm
NSK 699 bearing
9.0mm x 20mm x 6.0mm
NSK 609 bearing
9.0mm x 24mm x 7.0mm
NSK 639 bearing
9.0mm x 30mm x 10.0mm
