NSK 63/22DDU Bearing

NSK 63/22DDU Single row deep groove ball bearing

Also known as : 63/22DDU, 63/22-2RS1, 63/22-2RSR, 63/22LLU

  • Inside Diameter: 22 mm
  • Outside Diameter: 56 mm
  • Width: 16 mm
  • Basic dynamic load rating: 18.4 kN
  • Basic static load rating: 9.25 kN

Inquire Now


NSK 63/22DDU Bearing

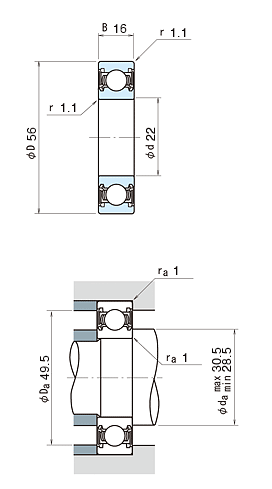

NSK 63/22DDU Bearing details

model 63/22DDU
d 22 mm
D 56 mm
B 16 mm
rmin. 1.1 mm
Cr 18400 N
C0r 9250 N
Limiting speeds 9500 min-1 (Grease)
Mass 0.179 kg (approx.)

DDU: with two contact sealed.

NSK 63/22DDU bearing cross reference

NSK 60/22 bearing
22mm x 44mm x 12mm
NSK 63/22 bearing
22mm x 56mm x 16mm
NSK 60/22ZZ bearing
22mm x 44mm x 12mm
NSK 63/22ZZ bearing
22mm x 56mm x 16mm
NSK 60/22DDU bearing
22mm x 44mm x 12mm
NSK 63/22DDU bearing
22mm x 56mm x 16mm
NSK 60/22VV bearing
22mm x 44mm x 12mm
NSK 63/22VV bearing
22mm x 56mm x 16mm
NTN 63/22ZZ bearing
22mm x 56mm x 16mm
NTN 63/22LLB bearing
22mm x 56mm x 16mm
NTN 63/22LLU bearing
22mm x 56mm x 16mm
