NSK 6306DDU Deep groove ball bearings
Also known as : 6306DDU, 6306LLU, 6306-2RS1, 6306-2RSR
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 19 mm
- Basic dynamic load rating: 26.7 kN
- Basic static load rating: 15 kN
NSK 6306DDU Bearing

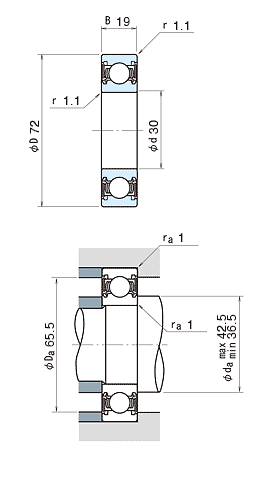

NSK 6306DDU Bearing details
model | 6306DDU |
---|---|
d | 30 mm |
D | 72 mm |
B | 19 mm |
rmin. | 1.1 mm |
Cr |
26700 N 2720 kgf |
C0r |
15000 N 1530 kgf |
Limiting speeds | 6700 min-1 (Grease) |
f0 | 13.3 (Factor) |
da min | 36.5 mm |
da max | 42.5 mm |
Da | 65.5 mm |
ra | 1 mm |
Mass | 0.345 kg (approx.) |
NSK 6306DDU ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
