NSK 6314ZZ Bearing

NSK 6314ZZ Deep groove ball bearings

Also known as : 6314ZZ, 6314-2Z

  • Inside Diameter: 70 mm
  • Outside Diameter: 150 mm
  • Width: 35 mm
  • Basic dynamic load rating: 104 kN
  • Basic static load rating: 68 kN

Inquire Now


NSK 6314ZZ Bearing

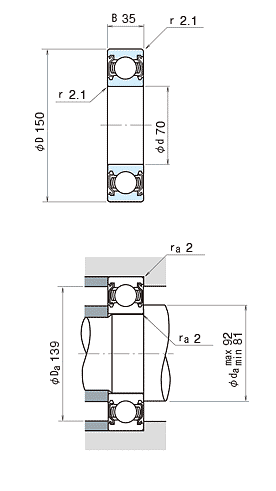

NSK 6314ZZ Bearing details

model 6314ZZ
d 70 mm
D 150 mm
B 35 mm
rmin. 2.1 mm
Cr 104000 N
10600 kgf
C0r 68000 N
6950 kgf
Limiting speeds 4500 min-1 (Grease)
f0 13.2 (Factor)
da min 81 mm
da max 92 mm
Da 139 mm
ra 2 mm
Mass 2.570 kg (approx.)

NSK 6314ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.

NSK 6314ZZ bearing cross reference

SKF 6314-2Z bearing
70mm x 150mm x 35mm
NSK 6814 bearing
70mm x 90mm x 10mm
NSK 6914 bearing
70mm x 100mm x 16mm
NSK 16014 bearing
70mm x 110mm x 13mm
NSK 6014 bearing
70mm x 110mm x 20mm
NSK 6214 bearing
70mm x 125mm x 24mm
NSK 6314 bearing
70mm x 150mm x 35mm
NSK 6814ZZ bearing
70mm x 90mm x 10mm
NSK 6914ZZ bearing
70mm x 100mm x 16mm
NSK 6014ZZ bearing
70mm x 110mm x 20mm
NSK 6214ZZ bearing
70mm x 125mm x 24mm
NSK 6814DD bearing
70mm x 90mm x 10mm
