NSK 6916ZZ Deep groove ball bearings
Also known as : 6916ZZ, 61916-2Z
- Inside Diameter: 80 mm
- Outside Diameter: 110 mm
- Width: 16 mm
- Basic dynamic load rating: 25 kN
- Basic static load rating: 24 kN
NSK 6916ZZ Bearing

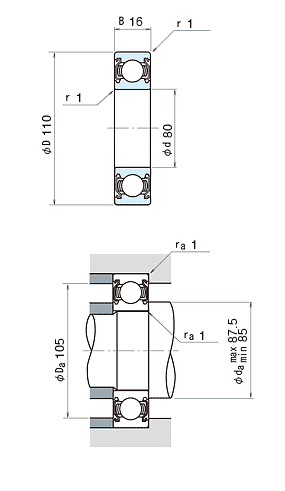

NSK 6916ZZ Bearing details
model | 6916ZZ |
---|---|
d | 80 mm |
D | 110 mm |
B | 16 mm |
rmin. | 1.0 mm |
Cr |
25000 N 2540 kgf |
C0r |
24000 N 2450 kgf |
Limiting speeds | 5600 min-1 (Grease) |
f0 | 16.6 (Factor) |
da min | 85 mm |
da max | 87.5 mm |
Da | 105 mm |
ra | 1 mm |
Mass | 0.391 kg (approx.) |
NSK 6916ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
