NSK 7206B Bearing

NSK 7206B Angular Contact Ball Bearings

Also known as : 7206B

  • Inside Diameter: 30 mm
  • Outside Diameter: 62 mm
  • Width: 16 mm
  • Basic dynamic load rating: 20.5 kN
  • Basic static load rating: 13.5 kN

Inquire Now


NSK 7206B Bearing

NSK 7206B Bearing details

model 7206B
d 30 mm
D 62 mm
B 16 mm
a 27.3 mm
rmin. 1.0 mm
r1 min. 0.60 mm
Cr 20500 N
2090 kgf
C0r 13500 N
1380 kgf
Limiting speeds 8500 min-1 (Grease)
Limiting speeds 12000 min-1 (Oil)
da 36.0 mm
Da 56.0 mm
ra 1.0 mm
Mass 0.202 kg (approx.)

As a NSK Bearing distributor, Nodes bearings have NSK 7206B ball bearings in stock, B: Contact Angle of 40°, single row. more related NSK bearings: NSK angular contact ball bearings catalogue.

NSK 7206B bearing cross reference

FAG 7206-B-XL-JP bearing
30mm x 62mm x 16mm
FAG 7206-B-XL-MP bearing
30mm x 62mm x 16mm
FAG 7206-B-XL-TVP bearing
30mm x 62mm x 16mm

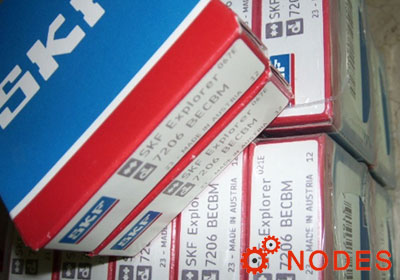

SKF 7206 BECBM bearing
30mm x 62mm x 16mm

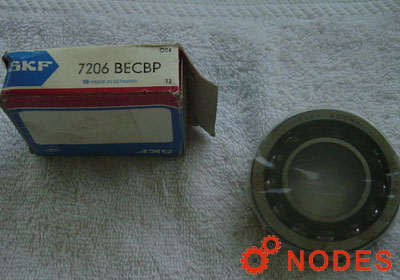

SKF 7206 BECBP bearing
30mm x 62mm x 16mm
NSK 7906A5 bearing
30mm x 47mm x 9mm
NSK 7306B bearing
30mm x 72mm x 19mm
NSK 7906C bearing
30mm x 47mm x 9mm
NSK 7006C bearing
30mm x 55mm x 13mm
NSK 7206C bearing
30mm x 62mm x 16mm
NSK 7006A bearing
30mm x 55mm x 13mm
NSK 7206A bearing
30mm x 62mm x 16mm
