NSK 7220A Bearing

NSK 7220A Angular Contact Ball Bearings

Also known as : 7220A

  • Inside Diameter: 100 mm
  • Outside Diameter: 180 mm
  • Width: 34 mm
  • Basic dynamic load rating: 144 kN
  • Basic static load rating: 126 kN

Inquire Now


NSK 7220A Bearing

NSK 7220A Bearing details

model 7220A
d 100 mm
D 180 mm
B 34 mm
a 57.4 mm
rmin. 2.1 mm
r1 min. 1.10 mm
Cr 144000 N
14700 kgf
C0r 126000 N
12800 kgf
Limiting speeds 4000 min-1 (Grease)
Limiting speeds 5300 min-1 (Oil)
da 112.0 mm
Da 168.0 mm
ra 2.0 mm
Mass 3.220 kg (approx.)

As a NSK Bearing distributor, Nodes bearings have NSK 7220A ball bearings in stock, A :Contact Angle of 30°, single row. more related NSK bearings: NSK angular contact ball bearings catalogue.

NSK 7220A bearing cross reference

FAG 7220-B-XL-JP bearing
100mm x 180mm x 34mm
FAG 7220-B-XL-MP bearing
100mm x 180mm x 34mm
FAG 7220-B-XL-TVP bearing
100mm x 180mm x 34mm

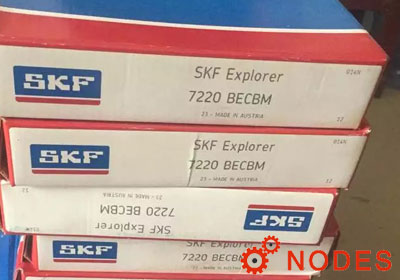

SKF 7220 BECBM bearing
100mm x 180mm x 34mm
NSK 7920A5 bearing
100mm x 140mm x 20mm
NSK 7220B bearing
100mm x 180mm x 34mm
NSK 7320B bearing
100mm x 215mm x 47mm
NSK 7920C bearing
100mm x 140mm x 20mm
NSK 7020C bearing
100mm x 150mm x 24mm
NSK 7220C bearing
100mm x 180mm x 34mm
NSK 7020A bearing
100mm x 150mm x 24mm
NSK 7320A bearing
100mm x 215mm x 47mm
