NSK 7304B Bearing

NSK 7304B Angular Contact Ball Bearings

Also known as : 7304B

  • Inside Diameter: 20 mm
  • Outside Diameter: 52 mm
  • Width: 15 mm
  • Basic dynamic load rating: 17.3 kN
  • Basic static load rating: 9.65 kN

Inquire Now


NSK 7304B Bearing

NSK 7304B Bearing details

model 7304B
d 20 mm
D 52 mm
B 15 mm
a 22.6 mm
rmin. 1.1 mm
r1 min. 0.60 mm
Cr 17300 N
1770 kgf
C0r 9650 N
985 kgf
Limiting speeds 11000 min-1 (Grease)
Limiting speeds 15000 min-1 (Oil)
da 27.0 mm
Da 45.0 mm
ra 1.0 mm
Mass 0.150 kg (approx.)

As a NSK Bearing distributor, Nodes bearings have NSK 7304B ball bearings in stock, B: Contact Angle of 40°, single row. more related NSK bearings: NSK angular contact ball bearings catalogue.

NSK 7304B bearing cross reference

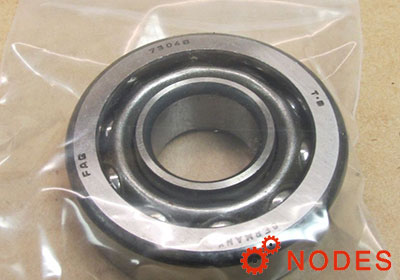

FAG 7304-B-JP bearing
20mm x 52mm x 15mm
FAG 7304-B-XL-MP bearing
20mm x 52mm x 15mm
FAG 7304-B-XL-TVP bearing
20mm x 52mm x 15mm
SKF 7304 BECBY bearing
20mm x 52mm x 15mm
SKF 7304 BEP bearing
20mm x 52mm x 15mm
NSK 7904A5 bearing
20mm x 37mm x 9mm
NSK 7204B bearing
20mm x 47mm x 14mm
NSK 7904C bearing
20mm x 37mm x 9mm
NSK 7004C bearing
20mm x 42mm x 12mm
NSK 7204C bearing
20mm x 47mm x 14mm

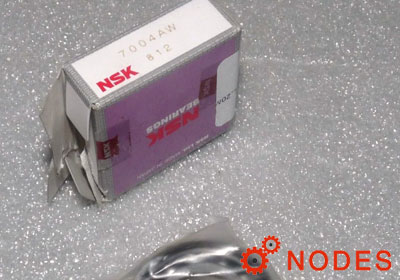

NSK 7004A bearing
20mm x 42mm x 12mm
NSK 7204A bearing
20mm x 47mm x 14mm
