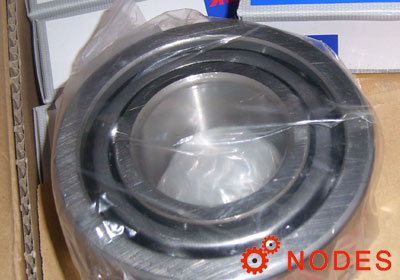

Nodes supplies NSK single row angular contact ball bearings, 52, 53 series.
NSK 5200 Angular Contact Ball Bearings
NSK 5200 bearing, angular contact ball bearings, double row, Dimensions: 10mm x 30mm x 14.3mm, Limiting Speeds:17000.
- Brand: NSK
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 14.3 mm
- Basic dynamic load rating: 7.15 kN
- Basic static load rating: 7.15 kN
NSK 5201 Angular Contact Ball Bearings
NSK 5201 bearing, angular contact ball bearings, double row, Dimensions: 12mm x 32mm x 15.9mm, Limiting Speeds:15000.
- Brand: NSK
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 15.9 mm
- Basic dynamic load rating: 10.5 kN
- Basic static load rating: 10.5 kN
NSK 5202 Angular Contact Ball Bearings
NSK 5202 bearing, angular contact ball bearings, double row, Dimensions: 15mm x 35mm x 15.9mm, Limiting Speeds:13000.
- Brand: NSK
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 15.9 mm
- Basic dynamic load rating: 11.7 kN
- Basic static load rating: 11.7 kN
NSK 5203 Angular Contact Ball Bearings
NSK 5203 bearing, angular contact ball bearings, double row, Dimensions: 17mm x 40mm x 17.5mm, Limiting Speeds:11000.
- Brand: NSK
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 17.5 mm
- Basic dynamic load rating: 14.6 kN
- Basic static load rating: 14.6 kN
NSK 5204 Angular Contact Ball Bearings
NSK 5204 bearing, angular contact ball bearings, double row, Dimensions: 20mm x 47mm x 20.6mm, Limiting Speeds:10000.
- Brand: NSK
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 20.6 mm
- Basic dynamic load rating: 19.6 kN
- Basic static load rating: 19.6 kN
NSK 5304 Angular Contact Ball Bearings
NSK 5304 bearing, angular contact ball bearings, double row, Dimensions: 20mm x 52mm x 22.2mm, Limiting Speeds:9000.
- Brand: NSK
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 22.2 mm
- Basic dynamic load rating: 24.6 kN
- Basic static load rating: 24.6 kN
NSK 5205 Angular Contact Ball Bearings
NSK 5205 bearing, angular contact ball bearings, double row, Dimensions: 25mm x 52mm x 20.6mm, Limiting Speeds:8500.
- Brand: NSK
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 20.6 mm
- Basic dynamic load rating: 21.3 kN
- Basic static load rating: 21.3 kN
NSK 5306 Angular Contact Ball Bearings
NSK 5306 bearing, angular contact ball bearings, double row, Dimensions: 30mm x 72mm x 30.2mm, Limiting Speeds:6300.
- Brand: NSK
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 30.2 mm
- Basic dynamic load rating: 40.5 kN
- Basic static load rating: 40.5 kN
NSK 5207 Angular Contact Ball Bearings
NSK 5207 bearing, angular contact ball bearings, double row, Dimensions: 35mm x 72mm x 27.0mm, Limiting Speeds:6300.
- Brand: NSK
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 27 mm
- Basic dynamic load rating: 39 kN
- Basic static load rating: 39 kN
NSK 5308 Angular Contact Ball Bearings
NSK 5308 bearing, angular contact ball bearings, double row, Dimensions: 40mm x 90mm x 36.5mm, Limiting Speeds:5300.
- Brand: NSK
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 36.5 mm
- Basic dynamic load rating: 56.5 kN
- Basic static load rating: 56.5 kN
NSK 5209 Angular Contact Ball Bearings
NSK 5209 bearing, angular contact ball bearings, double row, Dimensions: 45mm x 85mm x 30.2mm, Limiting Speeds:5000.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 30.2 mm
- Basic dynamic load rating: 49.5 kN
- Basic static load rating: 49.5 kN
NSK 5210 Angular Contact Ball Bearings
NSK 5210 bearing, angular contact ball bearings, double row, Dimensions: 50mm x 90mm x 30.2mm, Limiting Speeds:4800.
- Brand: NSK
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 30.2 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 53 kN
NSK 5211 Angular Contact Ball Bearings
NSK 5211 bearing, angular contact ball bearings, double row, Dimensions: 55mm x 100mm x 33.3mm, Limiting Speeds:4300.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 33.3 mm
- Basic dynamic load rating: 56 kN
- Basic static load rating: 56 kN
NSK 5311C3 Angular Contact Ball Bearings
NSK 5311C3 bearing, angular contact ball bearings, double row, Dimensions: 55mm x 120mm x 49.2mm, Limiting Speeds:3800.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 49.2 mm
- Basic dynamic load rating: 95 kN
- Basic static load rating: 95 kN
NSK 5312 Angular Contact Ball Bearings
NSK 5312 bearing, angular contact ball bearings, double row, Dimensions: 60mm x 130mm x 54.0mm, Limiting Speeds:3400.
- Brand: NSK
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 54 mm
- Basic dynamic load rating: 125 kN
- Basic static load rating: 125 kN
NSK 5313 Angular Contact Ball Bearings
NSK 5313 bearing, angular contact ball bearings, double row, Dimensions: 65mm x 140mm x 58.7mm, Limiting Speeds:3200.
- Brand: NSK
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 58.7 mm
- Basic dynamic load rating: 142 kN
- Basic static load rating: 142 kN
NSK 5302 Angular Contact Ball Bearings
NSK 5302 bearing, angular contact ball bearings, double row, Dimensions: 15mm x 42mm x 19.0mm, Limiting Speeds:11000.
- Brand: NSK
- Inside Diameter: 15 mm
- Outside Diameter: 42 mm
- Width: 19 mm
- Basic dynamic load rating: 17.6 kN
- Basic static load rating: 17.6 kN
NSK 5303 Angular Contact Ball Bearings
NSK 5303 bearing, angular contact ball bearings, double row, Dimensions: 17mm x 47mm x 22.2mm, Limiting Speeds:10000.
- Brand: NSK
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 22.2 mm
- Basic dynamic load rating: 21 kN
- Basic static load rating: 21 kN
NSK 5305 Angular Contact Ball Bearings
NSK 5305 bearing, angular contact ball bearings, double row, Dimensions: 25mm x 62mm x 25.4mm, Limiting Speeds:7500.
- Brand: NSK
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 25.4 mm
- Basic dynamic load rating: 32.5 kN
- Basic static load rating: 32.5 kN
NSK 5206 Angular Contact Ball Bearings
NSK 5206 bearing, angular contact ball bearings, double row, Dimensions: 30mm x 62mm x 23.8mm, Limiting Speeds:7100.
- Brand: NSK
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 23.8 mm
- Basic dynamic load rating: 29.6 kN
- Basic static load rating: 29.6 kN
NSK 5307 Angular Contact Ball Bearings
NSK 5307 bearing, angular contact ball bearings, double row, Dimensions: 35mm x 80mm x 34.9mm, Limiting Speeds:5600.
- Brand: NSK
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 34.9 mm
- Basic dynamic load rating: 51 kN
- Basic static load rating: 51 kN
NSK 5208 Angular Contact Ball Bearings
NSK 5208 bearing, angular contact ball bearings, double row, Dimensions: 40mm x 80mm x 30.2mm, Limiting Speeds:5600.
- Brand: NSK
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 30.2 mm
- Basic dynamic load rating: 44 kN
- Basic static load rating: 44 kN
NSK 5309 Angular Contact Ball Bearings
NSK 5309 bearing, angular contact ball bearings, double row, Dimensions: 45mm x 100mm x 39.7mm, Limiting Speeds:4500.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 39.7 mm
- Basic dynamic load rating: 68.5 kN
- Basic static load rating: 68.5 kN
NSK 5310 Angular Contact Ball Bearings
NSK 5310 bearing, angular contact ball bearings, double row, Dimensions: 50mm x 110mm x 44.4mm, Limiting Speeds:4300.
- Brand: NSK
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 44.4 mm
- Basic dynamic load rating: 81.5 kN
- Basic static load rating: 81.5 kN
NSK 5212 Angular Contact Ball Bearings
NSK 5212 bearing, angular contact ball bearings, double row, Dimensions: 60mm x 110mm x 36.5mm, Limiting Speeds:3800.
- Brand: NSK
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 36.5 mm
- Basic dynamic load rating: 69 kN
- Basic static load rating: 69 kN
NSK 5213 Angular Contact Ball Bearings
NSK 5213 bearing, angular contact ball bearings, double row, Dimensions: 65mm x 120mm x 38.1mm, Limiting Speeds:3600.
- Brand: NSK
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 38.1 mm
- Basic dynamic load rating: 76.5 kN
- Basic static load rating: 76.5 kN
NSK 5214 Angular Contact Ball Bearings
NSK 5214 bearing, angular contact ball bearings, double row, Dimensions: 70mm x 125mm x 39.7mm, Limiting Speeds:3400.
- Brand: NSK
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 39.7 mm
- Basic dynamic load rating: 94 kN
- Basic static load rating: 94 kN
NSK 5314 Angular Contact Ball Bearings
NSK 5314 bearing, angular contact ball bearings, double row, Dimensions: 70mm x 150mm x 63.5mm, Limiting Speeds:3000.
- Brand: NSK
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 63.5 mm
- Basic dynamic load rating: 159 kN
- Basic static load rating: 159 kN
NSK 5215 Angular Contact Ball Bearings
NSK 5215 bearing, angular contact ball bearings, double row, Dimensions: 75mm x 130mm x 41.3mm, Limiting Speeds:3200.
- Brand: NSK
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 41.3 mm
- Basic dynamic load rating: 93.5 kN
- Basic static load rating: 93.5 kN
NSK 5216 Angular Contact Ball Bearings
NSK 5216 bearing, angular contact ball bearings, double row, Dimensions: 80mm x 140mm x 44.4mm, Limiting Speeds:3000.
- Brand: NSK
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 44.4 mm
- Basic dynamic load rating: 99 kN
- Basic static load rating: 99 kN
NSK 5217 Angular Contact Ball Bearings
NSK 5217 bearing, angular contact ball bearings, double row, Dimensions: 85mm x 150mm x 49.2mm, Limiting Speeds:2800.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 49.2 mm
- Basic dynamic load rating: 116 kN
- Basic static load rating: 116 kN
