NSK F627VV bearing | 7x22x7mm
Also known as : F627VV
- Inside Diameter: 7 mm
- Outside Diameter: 22 mm
- Width: 7 mm
- Basic dynamic load rating: 3.3 kN
- Basic static load rating: 1.37 kN
NSK F627VV Bearing

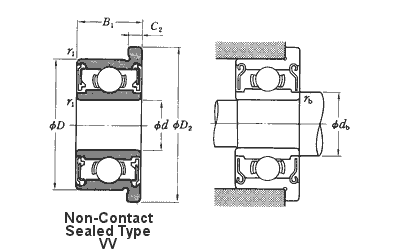

NSK F627VV Bearing details
| NSK number | F627VV |
|---|---|
| Type | Miniature ball bearings, Metric design, With Flange, With Two Non-Contact Sealed |
| d | 7 mm |
| D | 22 mm |
| D2 | 25 mm |
| B1 | 7 mm |
| C2 | 1.5 mm |
| r1 min. | 0.30 mm |
| Cr | 3300 N |
| C0r | 1370 N |
| Limiting speeds | 30000 min-1 (Grease) |
| da | 10.5 mm |
| rb | 0.30 mm |
| Mass | 14.20 g (approx.) |
Nodes bearings have NSK F627VV bearings in stock, Metric design, With Flange, With Two Non-Contact Sealed.
NSK F627VV bearing cross reference
NSK MR117 bearing
7.0mm x 11mm x 2.5mm
NSK MR137 bearing
7.0mm x 13mm x 3.0mm
NSK 687 bearing
7.0mm x 14mm x 3.5mm
NSK 697 bearing
7.0mm x 17mm x 5.0mm
NSK 607 bearing
7.0mm x 19mm x 6.0mm
NSK 627 bearing
7.0mm x 22mm x 7.0mm
NSK 637 bearing
7.0mm x 26mm x 9.0mm
NSK 697DD bearing
7mm x 17mm x 5mm
NSK 607DD bearing
7mm x 19mm x 6mm
NSK 627DD bearing
7mm x 22mm x 7mm
NSK 687VV bearing
7mm x 14mm x 5mm
